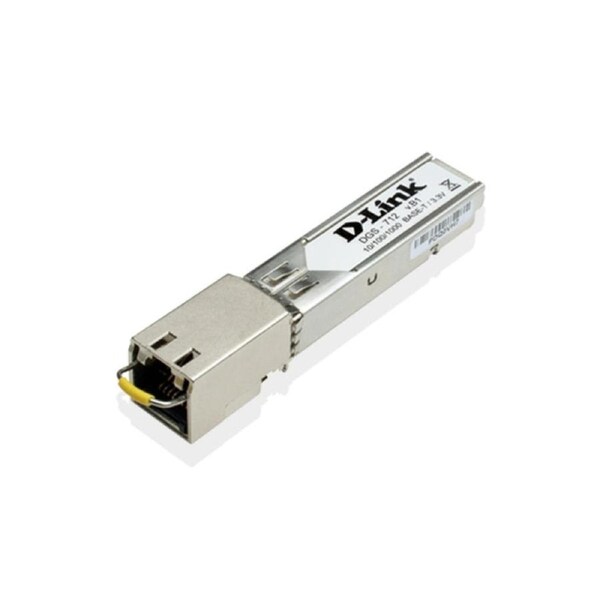

D-Link DGS-712 SFP 1000 BASE-T Copper Transceiver
1000Base-TX RJ45 SFP Transceiver - 100m
Features/Specifications:
Standard: IEEE 802.3ab 1000BASE-T Gigabit Ethernet
Transceiver Type: SFP (Small Form Pluggable)
Connector: RJ-45
Auto MDI/MDIX: Automatic crossover detection enabled, External crossover cable not required
Data Rate: 1,000 Mbps (IEEE 802.3 compatible), 10/100/1000 BASE-T operation requires the host system to have an SGMII interface with no clocks. With a SERDES interface, this transceiver will operate at 1000BASE-T only
Cable Type: Cat. 5 twisted-pair cable
Maximum Cable Distance Coverage: 100 meters
Supply Current: 350mA (typical), 400mA (maximum), 1.3W max power over full range of voltage and temperature *
Input Voltage: 3.1V (minimum), 3.3V (typical), 3.5V (maximum), Referenced to GND
Maximum Voltage: 4V
Surge Current: 30mA, Hot-plug above steady state current *
Operating Temperature: 0 to 85 C
Storage Temperature: -40 to 85 C
Up to 1.25Gb/s bi-directional data links
Hot-pluggable SFP footprint
Extended case temperature range
Fully metallic enclosure for low EMI
Low power dissipation (typical 1.2 watts)
RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus
10/100/1000 BASE-T operation in host systems with
SGMII interface
Gigabit Ethernet over Cat. 5 cable
+3.3V electrical power interface
