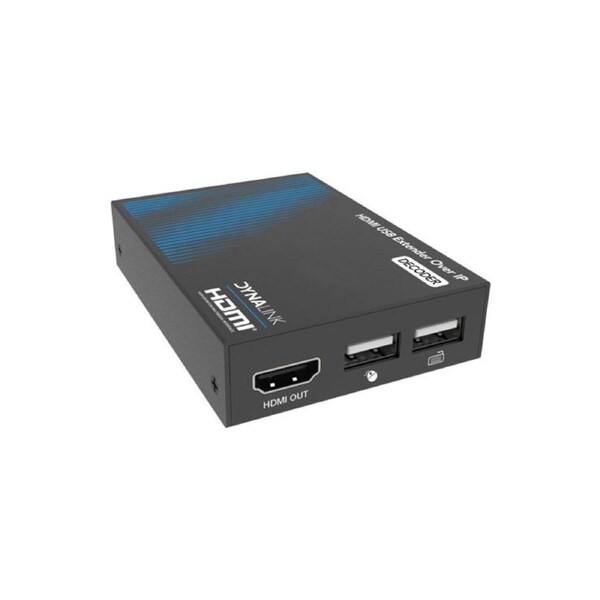

Dynalink A3111 HDMI USB KVM Over IP Extender - Decoder Receiver

Designed to extend HDMI signals over distances up to 150m using Cat6/6a cabling. In addition it also allows USB peripherals to control a connected computer from the receiver end. Infra-red control is relayed via the included IR emitter and target. The cable bandwidth allows for zero-delay operation with HDMI resolutions up to 1080p @ 60Hz. Power is via the included power supply

Designed to be used with the A3110 HDMI Over IP Encoder - see accessories listed below. Only a single encoder can be used on a network.

Box Contents
1× HDMI over IP Extender (Decoder)
1× IR Blaster cable (1.5ms)
1× 20-60KHz IR Receiver cable (1.5m)
1× 5V/1A Power Supply
1× User Manual

• Extend both HDMI signal plus IR control & USB peripherals
• Transmission up to 150m over Cat6/6a UTP cabling
• Ideal for remote operation of PC equipment
• HDCP 1.4 compliant
• 6.75Gbps video bandwidth
• H.265 encoding/decoding
• Supports USB 1.1 KVM pass-through
• Supports standard 1000MBps network switch/router

Technical

• HDCP Compliance: HDCP 1.4
• USB Version: USB 1.1
• Video Bandwidth: 6.75Gbps
• Resolution/Distance:1920x1200 @60Hz  CAT 5e/6 cable 150 meters
• Resolution/Cable Length: 1920x1200 @60Hz HDMI IN / OUT 15 meters

Video Resolution

• Input: Up to 1920 x 1200@60Hz
• Output: Up to 1080P@60Hz

Audio Formats

• Input: LPCM 2.0CH 32KHz/44.1KHz/48KHz
• Output: LPCM 2.0CH 48KHz
• IR Frequency: 20Hz ~ 60KHz
• Compression Technology: H.265
• Request for Switcher/Router: Support 1Gbps, Support DHCP
• Colour Depth: 8-bit,10-bit,12-bit
• Colour Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
• ESD Protection: Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

Connection

• Inputs: 1 x LAN (RJ45 connector)
• Outputs: 1 x HDMI OUT (Type A, 19-pin female)
• Control: 1 x IR IN (3.5mm Stereo Mini-jack), 2 x USB (USB-A, female)

Mechanical

• Housing:  Metal Enclosure
• Dimensions: 67W × 91.5D × 17.5Hmm
• Weight: 150g
• Power Supply Input: AC100 - 240V 50/60Hz Output: DC 5V/1A
• Power Consumption: 3.65W
• Operation Temperature: -10°C to 50°C
• Storage Temperature: -20°C to 60°C
• Relative Humidity : 20 to 90% RH (non-condensing)
