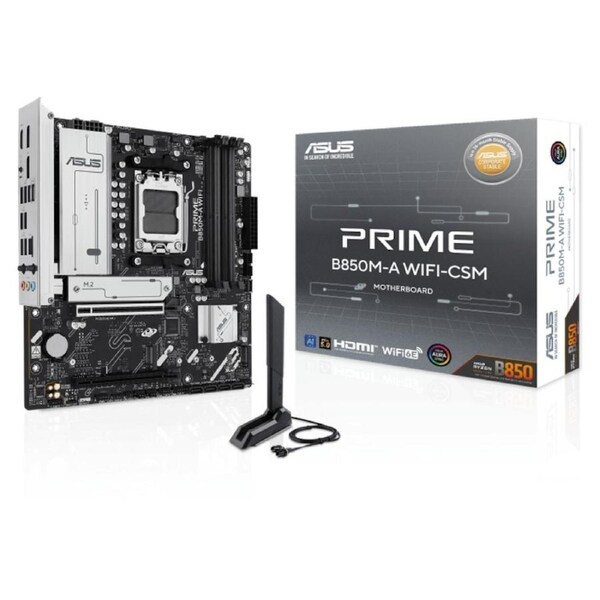

Asus PRIME B850M A WIFI CSM AMD Micro-ATX Motherboard [PRIME B850M-A WIFI-CSM]

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 series processors. The PRIME B850M-A WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

• 8+2+1:phase digital power design
• AEMP:for enhanced DDR5 performance
• 2.5Gb Ethernet:for faster data transfers
• WiFi 6E:for stable WiFi connection and lower latency
• USB 5Gbps Type-C:for rapid data transmission
• PCIe 5.0 slots:for graphics card and storage
• EZ PC DIY:for easier build customization
• Pre-mounted I/O shield:for safeguarding ports and enhancing aesthetics
• Aura Sync:for full RGB lighting control

• Model :PRIME B850M-A WIFI-CSM
• CPU :AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*
  * Refer to Official Asus Website for CPU support list.
• Chipset :AMD B850 Chipset
• Memory :4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
  Dual channel memory architecture
  Supports AMD Extended Profiles for Overclocking (EXPO)
  ASUS Enhanced Memory Profile (AEMP)
  * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit Official Asus Website . Adjustments will be made based on the specifications of mass-produced memory products available on the market.
  * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
• Graphics :2 x DisplayPort**
  1 x HDMI port***
  * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
  ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
  *** Supports 4K@60Hz as specified in HDMI 2.1.
• Expansion Slots :AMD Ryzen 9000 & 7000 Series Desktop Processors*
  1 x PCIe 5.0 x16 slot (supports x16 mode)
  AMD Ryzen 8000 Series Desktop Processors
  1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
  AMD B850 Chipset
  1 x PCIe 4.0 x16 slot (supports x1 mode)
  * Please check the PCIe bifurcation table on the support site .
  ** Specifications vary by CPU types.
  - To ensure compatibility of the device installed, please refer to Official Asus Website for the list of supported
• Storage :Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
  AMD Ryzen 9000 & 7000 Series Desktop Processors
  M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  AMD Ryzen 8000 Series Desktop Processors
  M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*
  AMD B850 Chipset
  M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports
  * Specifications vary by CPU types.
  AMD RAIDXpert2 Technology
  Ryzen 9000 Series Processors: RAID 0/1/5/10
  Ryzen 8000 Series Processors: RAID 0/1
  Ryzen 7000 Series Processors: RAID 0/1/10
• Ethernet :1 x Realtek 2.5Gb Ethernet
  ASUS LANGuard
• Wireless & Bluetooth :Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11ax)
  Supports 2.4/5/6GHz frequency band*
  Bluetooth v5.3**
  * WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later.
  ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
• USB :Rear USB (Total 8 ports)
  2 x USB 10Gbps ports (2 x Type-A )
  2 x USB 5Gbps ports (2 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  Front USB (Total 7 ports)
  1 x USB 5Gbps connector (supports USB Type-C)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  * USB Type-C power delivery output: max. 5V/3A
• Audio :Realtek 7.1 Surround Sound High Definition Audio CODEC*
  - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - Supports up to 24-Bit/192 kHz playback
  Audio Features
  - Audio Shielding
  - Premium audio capacitors
  - Dedicated audio PCB layers
  * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• Back Panel I/O Ports :2 x USB 10Gbps ports (2 x Type-A)
  2 x USB 5Gbps ports (2 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  2 x DisplayPort
  1 x HDMI port
  1 x Wi-Fi module
  1 x Realtek 2.5Gb Ethernet port
  3 x Audio jacks
  1 x BIOS FlashBack button
• Internal I/O Connectors :Fan and Cooling Related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  3 x 4-pin Chassis Fan headers
  Power Related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V CPU Power connectors
  1 x 4-pin +12V CPU Power connectors
  Storage Related
  3 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 5Gbps connector (supports USB Type-C )
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable RGB Gen 2 headers
  1 x Clear CMOS header
  1 x Chassis Intrusion header
  1 x COM Port header
  1 x Front Panel Audio header (F_AUDIO)
  1 x S/PDIF Out header
  1 x SPI TPM header (14-1 pin)
  1 x 10-1 pin System Panel header
• Special Features :ASUS 5X PROTECTION III
  - DIGI+ VRM
  - LANGuard
  - Overvoltage protection
  - SafeSlot
  - Stainless-steel back I/O
  ASUS Q-Design
  - Q-Antenna
  - Q-Dashboard
  - Q-DIMM
  - Q-LED Core
  - Q-Slot
  ASUS Thermal Solution
  - M.2 heatsink
  - VRM heatsink design
  ASUS EZ DIY
  - BIOS FlashBack button
  - BIOS FlashBack LED
  - Pre-mounted I/O shield
  Aura Sync
  - Addressable RGB Gen 2 headers
• Software Features :ASUS Exclusive Software
  Armoury Crate
  - Aura Creator
  - Aura Sync
  - Fan Xpert 2+
  ASUS AI Advisor
  ASUS Driver Hub
  ASUS GlideX
  TurboV Core
  ASUS CPU-Z
  Norton 360 Deluxe (60 Days Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  - ASUS MyHotkey
• BIOS :256 Mb Flash ROM, UEFI AMI BIOS
• Manageability :WOL by PME, PXE
• Accessories :Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x ASUS WiFi Q-Antenna
  1 x M.2 rubber package
  2 x Screw packages for M.2 SSD
  Documentation
  1 x Quick start guide
  1 x ACC Express activation key card
• Operating System :Windows 11, Windows 10 64-bit
• Form Factor :mATX Form Factor
  9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
