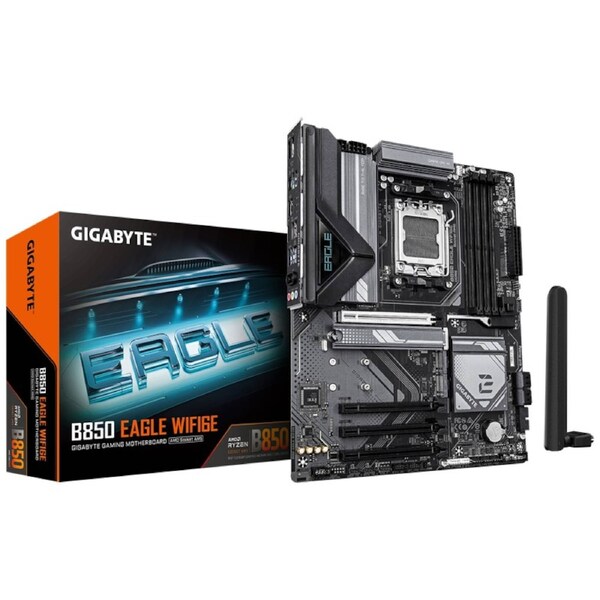

Gigabyte B850 EAGLE WIFI6E AMD ATX Motherboard

Gigabyte B850 EAGLE WIFI6E (rev. 1.x) - Lasting Quality from GIGABYTE.GIGABYTE Ultra Durable motherboards bring together a unique blend of features and technologies that offer users the absolute ultimate platform for...

• X3D Turbo Mode :Unleash new era gaming performance
• DDR5 OC up to 8200MT/s
• AMD Socket AM5 :Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
• Digital twin 8+2+2 phases VRM solution
• Dual Channel DDR5 :4*DIMMs with AMD EXPOMemory Module Support
• WIFI EZ-Plug :Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus :PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click :M.2 heatsinks with screwless design
• Friendly UI :Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-Fast Storage :3*M.2 slots, including PCIe 5.0 x4
• Efficient Thermal :VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking :GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
• Extended Connectivity :HDMI, Displayport
• PCIe UD Slot :PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

• CPU :AMD Socket AM5, support for:
  AMD Ryzen 9000 Series Processors/
  AMD Ryzen 8000 Series Processors/
  AMD Ryzen 7000 Series Processors
  (Go to GIGABYTE's website for the latest CPU support list.)
• Chipset :AMD B850
• Memory :Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
  4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
• Onboard Graphics :Integrated Graphics Processor with AMD Radeon Graphics support:
  - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
  * Support for DisplayPort 1.4 version and HDR.
  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  ** Support for native HDMI 2.1 TMDS compatible ports.
  (Graphics specifications may vary depending on CPU support.)
• Audio :Realtek Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• LAN :Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
• Wireless Communication module :Intel Wi-Fi 6E AX210 (PCB rev. 1.0)
  - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  - BLUETOOTH 5.3
  - Support for 11ax 160MHz wireless standard
  Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
  (Actual data rate may vary depending on environment and equipment.)
• Expansion Slots :1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
  AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
  * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  Chipset:
  - 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3)
• Storage Interface :1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
  AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
  AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
  1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
  AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
  AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
  1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs
  4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
  * RAID 5 is only available on AMD Ryzen 9000 Series Processors.
  RAID 0, RAID 1, and RAID 10 support for SATA storage devices
• USB :CPU:
  - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
  - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  Chipset:
  - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
  - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  - 4 x USB 2.0/1.1 ports on the back panel
  Chipset+USB 2.0 Hub:
  - 4 x USB 2.0/1.1 ports available through the internal USB headers
• Internal I/O Connectors :1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x 4-pin ATX 12V power connector
  1 x CPU fan header
  1 x CPU fan/water cooling pump header
  3 x system fan headers
  1 x system fan/water cooling pump header
  3 x addressable RGB Gen2 LED strip headers
  1 x RGB LED strip header
  3 x M.2 Socket 3 connectors
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB Type-C header, with USB 3.2 Gen 1 support
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  1 x reset button
  1 x reset jumper
  1 x Clear CMOS jumper
• Back Panel Connectors :1 x DisplayPort*
  1 x HDMI port*
  1 x Q-Flash Plus button
  4 x USB 2.0/1.1 ports
  1 x PS/2 keyboard/mouse port
  2 x USB 3.2 Gen 2 Type-A ports (red)
  1 x USB Type-C port, with USB 3.2 Gen 1 support
  1 x RJ-45 port
  2 x USB 3.2 Gen 1 ports
  2 x antenna connectors (2T2R)
  3 x audio jacks
  * Actual support may vary by CPU.
• I/O Controller :iTE I/O Controller Chip
• H/W Monitoring :Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• BIOS :1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features :Support for GIGABYTE Control Center (GCC)
  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  Support for Q-Flash
  Support for Q-Flash Plus
  Support for Smart Backup
• Bundled Software :Norton Internet Security (OEM version)
  LAN bandwidth management software
• Operating System :Support for Windows 11 64-bit
  Support for Windows 10 64-bit
• Form Factor :ATX Form Factor; 30.5cm x 24.4cm
