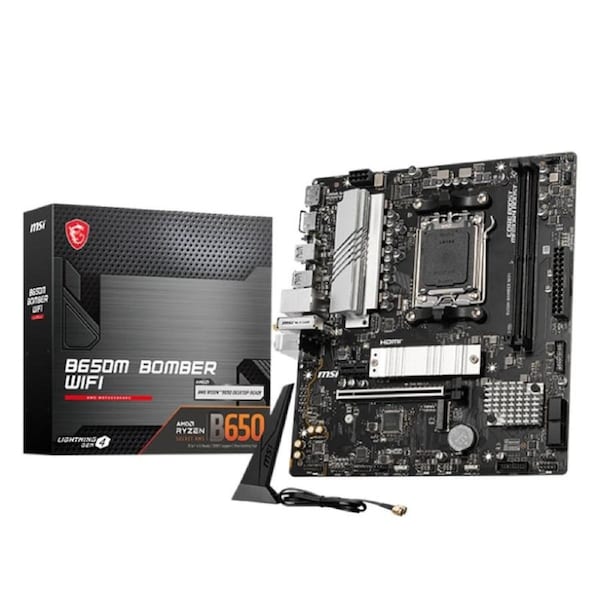

[B650M BOMBER WIFI] MSI AMD Micro-ATX Motherboard

B650M BOMBER WIFI - PRO series motherboards tuned for better performance by DDR5 memory with Memory Boost, Lightning Gen4 PCIe, M.2 Shield Frozr, Wi-Fi 6E, 2.5G LAN, Type-C

• Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
• Core Boost :With premium layout and digital power design to support more cores and provide better performance
• Memory Boost:Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Lightning Fast Game experience:PCIe 4.0 slot, Lightning Gen 4 x4 M.2
• 2.5G LAN:Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST:Reward your ears with studio grade sound quality for the most immersive gaming experience
• Steel Armor:Protecting VGA cards against bending and EMI for better performance, stability and strength

• Chipset :AMD B650
• CPU :Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
  Socket AM5
• Memory :2x DDR5, Maximum Memory Capacity 128GB
  Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s
  Max. overclocking frequency:
  1DPC 1R Max speed up to 7800+ MT/s
  1DPC 2R Max speed up to 6400+ MT/s
  Supports Dual-Channel mode
  Supports non-ECC, un-buffered memory
  Supports AMD EXPO
• Onboard Graphics :1x HDMISupport HDMI 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 4K 60Hz*
  *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• Slot :1x PCI-E x16 slot
  Supports x16/x1
  Supports x16 (For Ryzen 9000/ 7000 Series processors)
  Supports x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
  Supports x4 (For Ryzen 8500/ 8300 Series processors)1x PCI-E x1 slotPCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
  PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
• Audio :Realtek ALC897 Codec
  7.1-Channel High Definition Audio
• Storage :2x M.2
  M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
  M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
  4x SATA 6G
  The M2_2 slot will be unavailable when using Ryzen 8500/ 8300 Series processor
• RAID :Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
  Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
• USB :2x USB 2.0 (Rear)
  4x USB 2.0 (Front)
  3x USB 5Gbps Type A (Rear)
  1x USB 5Gbps Type C (Rear)
  4x USB 5Gbps Type A (Front)
• LAN :Realtek
  RTL8125BG 2.5Gbps LAN
• Internal IO :1x Power Connector(ATX_PWR)
  1x Power Connector(CPU_PWR)
  1x CPU Fan
  3x System Fan
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  2x Addressable V2 RGB LED connector (JARGB_V2)
  1x RGB LED connector(JRGB)
  1x TPM pin header(Support TPM 2.0)
  4x USB 2.0 ports
  4x USB 5Gbps Type A ports
• WIRELESS LAN & BLUETOOTH :Wi-Fi 6E
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX
  Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
  Supports 802.11 a/ b/ g/ n/ ac/ ax
  Supports Bluetooth
  5.3**
  * The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country's regulations.** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details.
• LED FEATURE :4x EZ Debug LED
• BACK PANEL PORTS :DisplayPort
  HDMI
  Flash BIOS Button
  USB 5Gbps Type-A
  2.5G LAN
  Wi-Fi / Bluetooth
  Audio connectors
  USB 5Gbps Type-C
  USB 2.0
• OPERATING SYSTEM :Support for Windows
  11 64-bit, Windows
  10 64-bit
• PCB Info :mATX
  226mmx243.84mm
