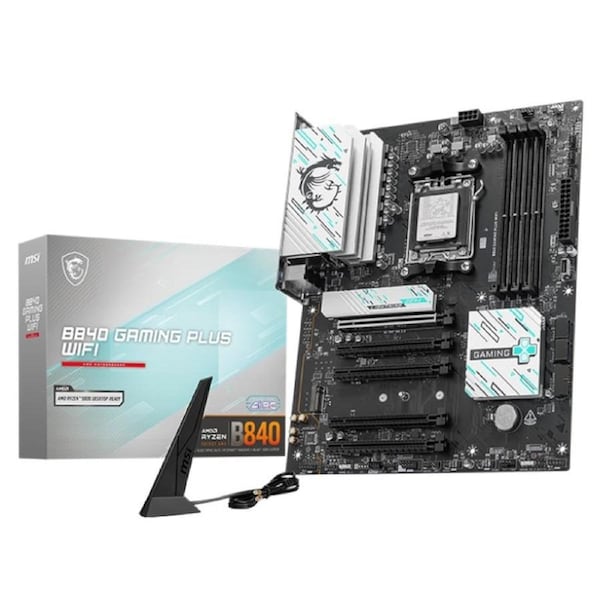

MSI B840 GAMING PLUS WIFI AMD ATX Motherboard

The B840 GAMING PLUS WIFI is a gaming oriented ATX motherboard that supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring Wi-Fi 7, 2.5G LAN, PCIe 4.0 and DDR5 that balances both value and premium hardware.

• Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC)
• Frozr Guard:Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• High-speed Connectivity:Full-speed Wi-Fi 7 with 2.5G LAN - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Ultra Performance:7+2+1 Phase Direct CPU Power, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB with 2oz thickened copper
• Lightning Fast Game experience:PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C
• EZ DIY:EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
• Audio Boost:Reward your ears with studio-grade sound quality for the most immersive gaming experience

• Chipset :AMD B840
• CPU :Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
  Socket AM5
• Memory :4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
  Ryzen 9000 Series Processors max. overclocking frequency:
  1DPC 1R Max speed up to 8000+ MT/s
  1DPC 2R Max speed up to 6400+ MT/s
  2DPC 1R Max speed up to 6400+ MT/s
  2DPC 2R Max speed up to 5600+ MT/s
  Supports AMD POR Speed and JEDEC Speed
  Supports Memory Overclocking and AMD EXPO
  Supports Dual-Channel mode
  Supports Non-ECC, Un-buffered memory
  Supports CUDIMM, Clock Driver bypass mode only*
  * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
  Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product's Support page or visit Official MSI Website.
• Onboard Graphics :1x HDMISupport HDMI 2.1, maximum resolution of 4K 60Hz*
  *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• Slot :5x PCI-E x16 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
  PCI_E1 slot
  Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors)
  Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
  Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
• Audio :Realtek
  ALC8977.1-Channel High Definition Audio
• Storage :2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
  4x SATA 6G
  M2_2 slot
  Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 7000 Series processors)
  Supports up to PCIe 3.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)
  Supports up to PCIe 3.0 x2 (For Ryzen 8500/ 8300 Series processor)
  *Please refer to the manual for M.2 SSD heatsink restrictions.
• RAID :Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  Supports RAID 0, RAID 1 for M.2 NVMe storage devices
• USB :4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)1x USB 5Gbps Type C (Front)1x USB 10Gbps Type A (Rear)
  1x USB 10Gbps Type C (Rear)
• LAN :Realtek
  8125BG 2.5G LAN
• Internal IO :1x Power Connector(ATX_PWR)
  1x Power Connector(CPU_PWR)
  1x CPU Fan
  1x Combo Fan (Pump_Sys Fan)
  4x System Fan
  1x EZ Conn-header (JAF_1)
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x Com Port (JCOM)
  1x Tuning Controller connector(JDASH)
  2x Addressable V2 RGB LED connector (JARGB_V2)
  1x RGB LED connector(JRGB)
  1x TPM pin header(Support TPM 2.0)
  4x USB 2.0 ports
  2x USB 5Gbps Type A ports
  1x USB 5Gbps Type C ports
• WIRELESS LAN & BLUETOOTH :Wi-Fi 7 Solution
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  Supports Bluetooth
  5.4**, MLO, 4KQAM
  * 6GHz band support may depend on every country's regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
• LED FEATURE :4x EZ Debug LED
• BACK PANEL PORTS :Clear CMOS Button
  USB 10Gbps (Type-A)
  USB 2.0
  2.5G LAN
  Wi-Fi / Bluetooth
  Audio connectors
  Flash BIOS Button
  HDMI 2.1 Port
  USB 10Gbps (Type-C)
  USB 5Gbps (Type-A)
• OPERATING SYSTEM :Support for Windows
  11 64-bit
• PCB Info :ATX
  243.84mmx304.8mm
