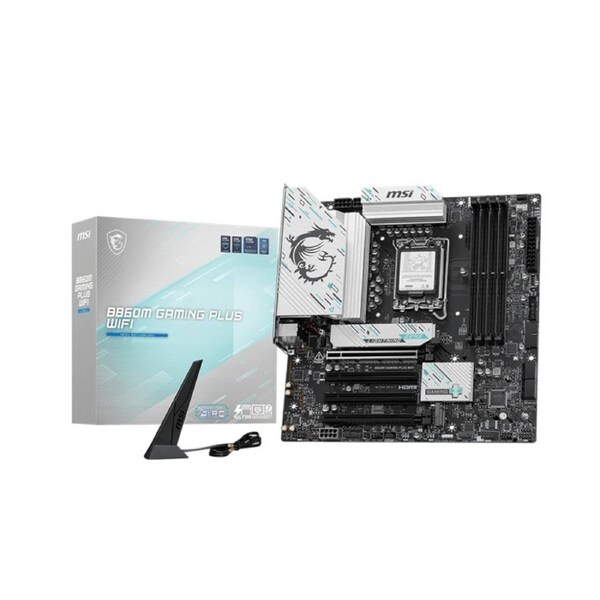

MSI B860M GAMING PLUS WIFI Intel Micro-ATX Motherboard

The B860M GAMING PLUS WIFI is a gaming oriented mATX motherboard that supports the latest Intel Core Ultra Processors (Series 2), featuring PCIe 5.0, Thunderbolt 4, 5G LAN, Wi-Fi 7 and DDR5 that balances both value and premium hardware.

• Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
• Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
• Ultra Connect:Thunderbolt 4 port, Intel Killer 5G LAN & Intel Killer Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Ultra Performance:12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, and 6-layer server-grade level PCB
• Frozr Guard:Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• Lightning Fast Game experience:PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
• EZ DIY:EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
• Audio Boost:Reward your ears with studio grade sound quality for the most immersive gaming experience

• Chipset :INTEL B860
• CPU :Supports Intel Core Ultra Processors (Series 2)
  LGA 1851
• Memory :4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
  Max. overclocking frequency:
  1DPC 1R Max speed up to 8800+ MT/s
  1DPC 2R Max speed up to 7200+ MT/s
  2DPC 1R Max speed up to 6400+ MT/s
  2DPC 2R Max speed up to 5600+ MT/s
  Supports Intel
  POR Speed and JEDEC Speed
  Supports Memory Overclocking and Intel
  XMP 3.0
  Supports Dual-Controller Dual-Channel mode
  Supports Non-ECC, Un-buffered memory
  Supports CUDIMM
  The DIMM slots on this motherboard only have single-sided latches.- Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product's Support page or visit Official MSI Website.
• Onboard Graphics :1x HDMISupport HDMI 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DisplayPort 1.4, maximum resolution of 4K 60Hz*1x Type-C DisplayPortThunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
  *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• Slot :4x PCI-E x16 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
  PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
• Audio :Realtek
  ALC897 Codec
  7.1-Channel High Definition Audio
• Storage :3x M.2
  M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
  M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices
  4x SATA 6G
  *Please refer to the manual for M.2 SSD heatsink restrictions.
• RAID :Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Onboard Thunderbolt :1x Thunderbolt4 ports (Rear)
  Supports up to 40Gbps transfer rate with Thunderbolt devices
  Supports up to 20Gbps transfer rate with USB4 devices
  Supports up to 10Gbps transfer rate with USB 3.2 devices
  Supports up to 5V/3A,15W power charging
  Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
  Supports up to 8K display
• USB :2x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)1x USB 5Gbps Type C (Rear)4x USB 5Gbps Type A (Front)
  1x USB 10Gbps Type A (Rear)
  1x USB 10Gbps Type C (Front)
• LAN :Intel
  Killer E5000 5Gbps LAN
• Internal IO :1x Thunderbolt5 card connector(JTBT5, support RTD3)
  1x Power Connector(ATX_PWR)
  2x Power Connector(CPU_PWR)
  1x Power Connector(PCIE_PWR 8pin)
  1x CPU Fan
  1x Combo Fan (Pump_Sys Fan)
  3x System Fan
  1x EZ Conn-header (JAF_1)
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x Com Port (JCOM)
  1x Tuning Controller connector(JDASH)
  2x Addressable V2 RGB LED connector (JARGB_V2)
  1x RGB LED connector(JRGB)
  1x TPM pin header(Support TPM 2.0)
  4x USB 2.0 ports
  4x USB 5Gbps Type A ports
  1x USB 10Gbps Type C ports
• WIRELESS LAN & BLUETOOTH :Intel
  Killer BE1750x Wi-Fi 7
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  Supports Bluetooth
  5.4**, MLO, 4KQAM
  * 6GHz band support may depend on every country's regulations and Wi-Fi 7 will be ready in Windows 11 SV3.** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
• LED FEATURE :4x EZ Debug LED
• BACK PANEL PORTS :Display Port
  Clear CMOS Button
  5G LAN
  Wi-Fi / Bluetooth
  Audio Connectors
  HDMI
  Thunderbolt 4 40Gbps (Type-C)
  USB 2.0
  USB 5Gbps (Type-A)
  USB 5Gbps (Type-C)
  USB 10Gbps (Type-A)
• OPERATING SYSTEM :Support for Windows
  11 64-bit
• PCB Info :mATX
  243.84mmx243.84mm
