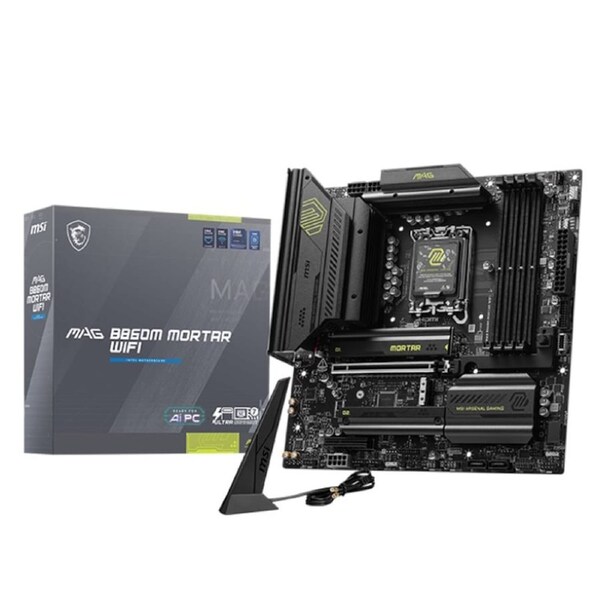

[MAG B860M MORTAR WIFI] MSI Intel Micro-ATX Motherboard

The MAG B860M MORTAR WIFI is a gaming oriented mATX motherboard that supports the latest Intel Core Ultra Processors (Series 2), featuring PCIe 5.0, Thunderbolt 4, 5G LAN, Wi-Fi 7 and DDR5 that balances both value and premium hardware.

• Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
• Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
• Ultra Performance:12+1+1+1 Duet Rail Power System 60A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard:Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• EZ DIY:EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
• Lightning Fast Game experience:PCIe 5.0 slot, Lightning Gen 5 x4 M.2
• Ultra Connect:Thunderbolt 4 port, Intel Killer 5G LAN & Intel Killer Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost :Reward your ears with studio grade sound quality for the most immersive gaming experience

• Chipset :INTEL B860
• CPU :Supports Intel Core Ultra Processors (Series 2)
  LGA 1851
• Memory :4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
  Max. overclocking frequency:
  1DPC 1R Max speed up to 9200+ MT/s
  1DPC 2R Max speed up to 7200+ MT/s
  2DPC 1R Max speed up to 6400+ MT/s
  2DPC 2R Max speed up to 5600+ MT/s
  Supports Intel
  POR Speed and JEDEC Speed
  Supports Memory Overclocking and Intel
  XMP 3.0
  Supports Dual-Controller Dual-Channel mode
  Supports Non-ECC, Un-buffered memory
  Supports CUDIMM
  The DIMM slots on this motherboard only have single-sided latches.- Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product's Support page or visit Official MSI Website.
• Onboard Graphics :1x HDMISupport HDMI 2.1 with FRL, maximum resolution of 8K 60Hz*/ **1x DisplayPortSupport DisplayPort 1.4, maximum resolution of 4K 60Hz*/ **1x Type-C DisplayPortThunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
  *Available only on processors featuring integrated graphics.
  ** Graphics specifications may vary depending on the CPU installed.
• Slot :1x PCI-E x16 slot1x PCI-E x4 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
• Audio :Realtek
  ALC897 Codec
  7.1-Channel High Definition Audio
  Supports S/PDIF output
• Storage :3x M.2
  M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
  M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  4x SATA 6G
  **Please refer to the manual for M.2 SSD heatsink restrictions.
• RAID :Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Onboard Thunderbolt :Thunderbolt Resource CPU
  1x Thunderbolt4 ports (Rear)
  Supports up to 40Gbps transfer rate with Thunderbolt devices
  Supports up to 20Gbps transfer rate with USB4 devices
  Supports up to 10Gbps transfer rate with USB 3.2 devices
  Supports up to 5V/3A,15W power charging
  Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
  Supports up to 8K display
• USB :4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Front)3x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear)
  1x USB 10Gbps Type C (Front)
• LAN :Intel
  Killer E5000 5Gbps LAN
• Internal IO :1x Thunderbolt5 card connector(JTBT5, support RTD3)
  1x Power Connector(ATX_PWR)
  2x Power Connector(CPU_PWR)
  1x Power Connector(PCIE_PWR 8pin)
  1x CPU Fan
  1x Combo Fan (Pump_Sys Fan)
  4x System Fan
  1x EZ Conn-header (JAF_1)
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x Tuning Controller connector(JDASH)
  3x Addressable V2 RGB LED connector (JARGB_V2)
  1x RGB LED connector(JRGB)
  1x TPM pin header(Support TPM 2.0)
  4x USB 2.0 ports
  2x USB 5Gbps Type A ports
  1x USB 10Gbps Type C ports
• WIRELESS LAN & BLUETOOTH :Intel
  Killer BE1750x Wi-Fi 7
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  Supports Bluetooth
  5.4**, MLO, 4KQAM
  * 6GHz band support may depend on every country's regulations and Wi-Fi 7 will be ready in Windows 11 SV3.** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
• LED FEATURE :4x EZ Debug LED
  1x EZ Memory Detection LED
• BACK PANEL PORTS :DisplayPort
  USB 2.0
  USB 10Gbps Type-A
  5G LAN
  Wi-Fi / Bluetooth
  Audio Connectors
  HDMI
  Thunderbolt 4 40Gbps (Type-C)
  Flash BIOS Button
  Clear CMOS Button
  USB 10Gbps Type-C
  S/PDIF-OUT
• OPERATING SYSTEM :Support for Windows
  11 64-bit
• PCB Info :mATX
  243.84mmx243.84mm
