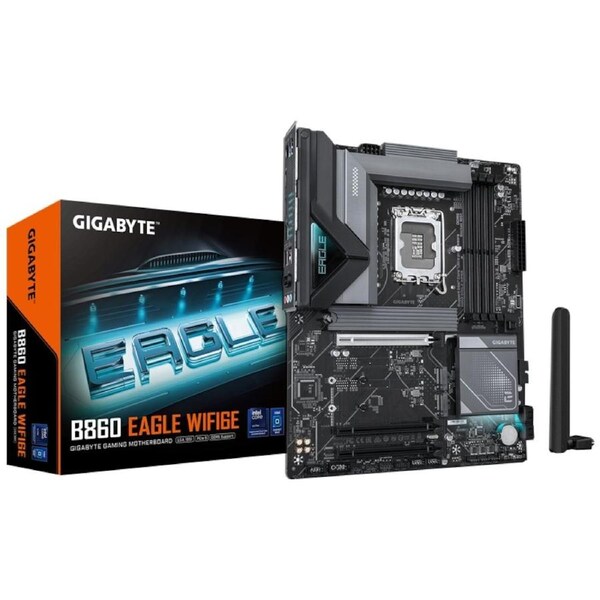

Gigabyte B860 EAGLE WIFI6E Intel ATX Motherboard

Gigabyte B860 EAGLE WIFI6E - Lasting Quality from GIGABYTE.GIGABYTE Ultra Durable motherboards bring together a unique blend of features and technologies that offer users the absolute ultimate platform for...

• Supports Intel Core Ultra processors (Series 2)
• Digital twin 12+1+2 phases VRM solution
• Dual Channel DDR5 :4*DIMMs with XMP Memory Module Support
• D5 Bionic Corsa for Infinite Memory Performance
• AI Perfdrive :Provides optimal and customized BIOS preset profile for users
• WIFI EZ-Plug :Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus :PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click :M.2 heatsinks with screwless design
• Friendly UI :Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• Ultra-Fast Storage :3*M.2 slots, including 1* PCIe 5.0 x4
• Efficient Thermal :VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking :2.5GbE LAN & Wi-Fi 6E
• Extended Connectivity :HDMI, DisplayPort

• CPU :LGA1851 socket: Support for Intel Core Ultra Processors
  (Go to GIGABYTE's website for the latest CPU support list.)
  L3 cache varies with CPU
• Chipset :Intel B860 Express Chipset
• Memory :Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
  4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
• Onboard Graphics :Integrated Graphics Processor-Intel HD Graphics support:
  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.1 version and HDCP 2.3.
  - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
  * Support for DisplayPort 2.1 version.
  (Graphics specifications may vary depending on CPU support.)
• Audio :Realtek Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  Support for S/PDIF Out
• LAN :Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication module :Intel Wi-Fi 6E AX211 (PCB rev. 1.0)
  - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  - BLUETOOTH 5.3
  - Support for 11ax 160MHz wireless standard
  Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
  (Actual data rate may vary depending on environment and equipment.)
• Expansion Slots :CPU:
  - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
  * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  Chipset:
  - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_3/4)
• Storage Interface :CPU:
  - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU)
  Chipset:
  - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB)
  - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2P_SB)
  - 4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
• USB :Chipset:
  - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
  - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
  - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  - 2 x USB 3.2 Gen 1 ports available through the internal USB headers
  - 4 x USB 2.0/1.1 ports on the back panel
  Chipset+USB 2.0 Hub:
  - 4 x USB 2.0/1.1 ports available through the internal USB headers
• Internal I/O Connectors :1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  1 x CPU fan/water cooling pump header
  2 x system fan headers
  2 x system fan/water cooling pump headers
  3 x addressable RGB Gen2 LED strip headers
  1 x RGB LED strip header
  3 x M.2 Socket 3 connectors
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x S/PDIF Out header
  1 x USB Type-C header, with USB 3.2 Gen 1 support
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
  1 x serial port header
  1 x Q-Flash Plus button
  1 x reset jumper
  1 x Clear CMOS jumper
• Back Panel Connectors :1 x PS/2 keyboard/mouse port
  1 x HDMI port (Note)
  1 x DisplayPort (Note)
  1 x USB Type-C port, with USB 3.2 Gen 2x2 support
  1 x USB 3.2 Gen 2 Type-A port (red)
  4 x USB 2.0/1.1 ports
  2 x antenna connectors (2T2R)
  1 x RJ-45 port
  3 x audio jacks
  (Note) Actual support may vary by CPU.
• I/O Controller :iTEI/O Controller Chip
• H/W Monitoring :Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
• BIOS :1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features :Support for GIGABYTE Control Center (GCC)
  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  Support for Q-Flash
  Support for Q-Flash Plus
  Support for Smart Backup
• Bundled Software :NortonInternet Security (OEM version)
  LAN bandwidth management software
• Operating System :Support for Windows 11 64-bit
  Support for Windows 10 64-bit
  * The Intel NPU driver is only supported on Windows 11.
• Form Factor :ATX Form Factor; 30.5cm x 24.4cm
