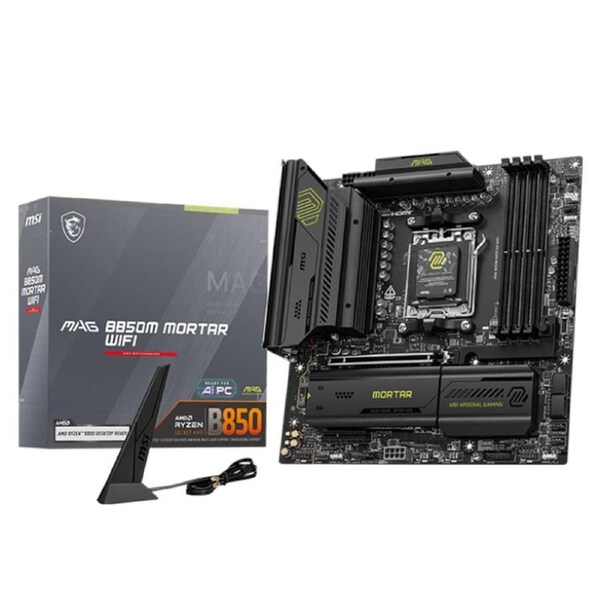

MSI PRO B850M MORTAR WIFI AMD Micro-ATX Motherboard [MAG B850M MORTAR WIFI]

MAG B850M MORTAR WIFI AMD AM5 gaming motherboard offers advanced connectivity with Wi-Fi 7, 5G LAN, high-speed USB, DDR5, PCIe 5.0, and M.2 Gen5. Designed for AI PCs and EZ DIY, this is the best B850 MATX motherboard for AMD Ryzen 9000 processors.

• Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
• Ultra Performance:12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper material
• Frozr Guard:Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• EZ DIY:EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
• Lightning Fast Game experience:PCIe 5.0 slot, Lightning Gen 5 x4 M.2, 20G USB Type-C
• 5G LAN with Wi-Fi 7 Solution:the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost 5:Reward your ears with studio-grade sound quality for the most immersive gaming experience

• Chipset :AMD B850
• CPU :Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
  Socket AM5
• Memory :4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
  Ryzen 9000 Series Processors max. overclocking frequency:
  1DPC 1R Max speed up to 8200+ MT/s
  1DPC 2R Max speed up to 6400+ MT/s
  2DPC 1R Max speed up to 6400+ MT/s
  2DPC 2R Max speed up to 6400+ MT/s
  Supports AMD POR Speed and JEDEC Speed
  Supports Memory Overclocking and AMD EXPO
  Supports Dual-Channel mode
  Supports Non-ECC, Un-buffered memory
  Supports CUDIMM, Clock Driver bypass mode only*
  * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
  The DIMM slots on this motherboard have double-sided latches.- Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product's Support page or visit Official MSI Website.
• Onboard Graphics :1x HDMISupport HDMI 2.1 FRL, maximum resolution of 8K 60Hz*
  *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• Slot :1x PCI-E x16 slot1x PCI-E x4 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
  PCI_E1 slot
  Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
  Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
  Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processors)
• Audio :Realtek
  ALC4080 Codec7.1-Channel USB High Performance Audio
  Supports up to 32-bit/384kHz playback on front panel
  Supports S/PDIF output
• Storage :3x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices 4x SATA 6G
  M2_1 slot
  Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
  Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
  M2_2 slot
  Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)
  Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)
  M2_3 slot
  Supports up to PCIe 4.0 x2
  ** Please refer to the manual for M.2 SSD heatsink restrictions
• Multi-GPU :AMD MULTI-GPU Support
• RAID :Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
  Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
  *RAID 5 configuration is only supported by Ryzen 9000 series processors.
• USB :4x USB 2.0 (Front)4x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)3x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear)1x USB 10Gbps Type C (Front)1x USB 20Gbps Type C (Rear)
• LAN :Realtek
  8126-VB 5G LAN
• Internal IO :1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x Power Connector(PCIE_PWR 8pin)1x CPU Fan1x Combo Fan (Pump_Sys Fan)4x System Fan1x EZ Conn-header (JAF_1)
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x Tuning Controller connector(JDASH)
  3x Addressable V2 RGB LED connector (JARGB_V2)
  1x RGB LED connector(JRGB)
  1x TPM pin header(Support TPM 2.0)
  4x USB 2.0 ports
  2x USB 5Gbps Type A ports
  1x USB 10Gbps Type C ports
• WIRELESS LAN & BLUETOOTH :Wi-Fi 7 Solution
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  Supports Bluetooth
  5.4**, MLO, 4KQAM
  * 6GHz band support may depend on every country's regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
• LED FEATURE :4x EZ Debug LED
  1x EZ Memory Detection LED
• BACK PANEL PORTS :Clear CMOS Button
  5G LAN
  USB 10Gbps Type-A
  USB 5Gbps Type-A
  Audio Connectors
  Flash BIOS Button
  HDMI
  USB 10Gbps Type-C
  USB 20Gbps Type-C
  Wi-Fi / Bluetooth
  Optical S/PDIF Out
• OPERATING SYSTEM :Support for Windows
  11 64-bit
• PCB Info :mATX
  243.84mmx243.84mm
