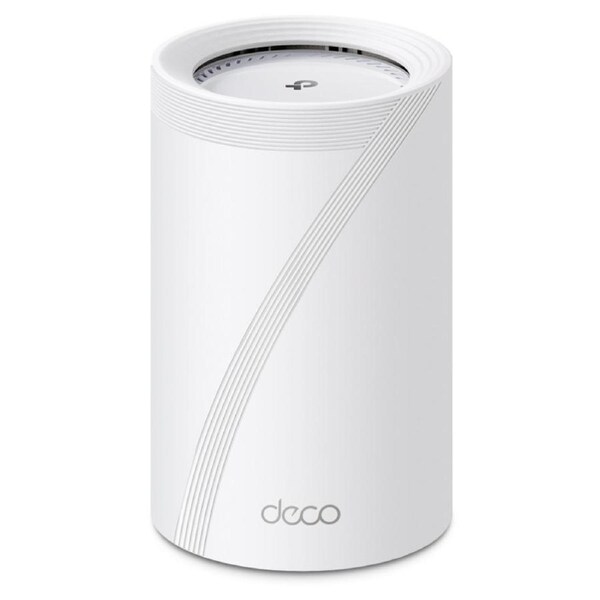

TP-Link Deco BE68(1-pack) BE14000 Tri-Band Whole Home Mesh Wi-Fi 7 System
TP-Link BE14000 Tri-Band Whole Home Mesh Wi-Fi 7 System - Deco BE68 is the latest 8-stream tri-band Whole Home Mesh WiFi 7 system, featuring the latest 6 GHz band, 320 MHz bandwidth, and 4K-QAM for a combined speed of up to 14 Gbps across 9 streams.
- 8-Stream 14 Gbps Tri-Band Wi-Fi - 8647 Mbps (6 GHz) + 4324 Mbps (5 GHz) + 688 Mbps (2.4 GHz).
- Unprecedented 10 Gbps Network - 1x 10 Gbps WAN/LAN port + 1x 2.5 Gbps WAN/LAN port + 1x 1.0 Gbps port ensure max flexibility and boosted throughput.
- Wireless and Wired Combined Backhaul - Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency.
- Multi-Link Operation (MLO) - Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.
- 320 MHz Channels - Double the bandwidth and enables many more simultaneous transmissions at the fastest possible speeds.
- Works on the 6 GHz Band - Minimises congestion with greenfield spectrum, delivering robust high-speed connections.
- TP-Link HomeShield - Provides comprehensive network protection, robust parental controls, and real-time IoT security.
- Universal Compatibility - Backward compatible with all Wi-Fi generations and works with any internet service provider (ISP) and modem.
- Standards and ProtocolsWi-Fi 7
IEEE 802.11be/ax 6 GHz
IEEE 802.11be/ax/ac/n/a 5 GHz
IEEE 802.11be/ax/n/b/g 2.4 GHz - WiFi SpeedsBE14000
6 GHz: 8647 Mbps (802.11be)
5 GHz: 4324 Mbps (802.11be)
2.4 GHz: 688 Mbps (802.11be) - WiFi RangeBroader Whole Home Coverage
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
AI-Driven Mesh
Intelligently learns the network environment to provide ideal Wi-Fi unique to your home
8x High-Gain Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas
Tri-Band
The greenfield 6 GHz band brings more bandwidth and faster speeds - WiFi CapacityVery High
Tri-Band
Distribute devices to different bands for optimal performance
3x3 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple WiFi 7 clients
8 Streams
More than enough bandwidth for connected devices - Working ModesRouter Mode
Access Point Mode - Advanced FeaturesMulti-Link Operation (MLO)
320 MHz Channel
4K-QAM
Multi-RUs
Works with Alexa and Google Assistant
- Network SecuritySPI Firewall
Access Control
HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner - Guest Network1x 6 GHz Guest Network1x 5 GHz Guest Network1x 2.4 GHz Guest Network
Effective Time
Bandwidth Control - VPN ServerOpenVPN Server
PPTP VPN Server
L2TP/IPSec VPN Server
WireGuard VPN Server - VPN ClientOpenVPN Client
PPTP VPN Client
L2TP/IPSec VPN Client
WireGuard VPN Client - WiFi EncryptionWPA-Personal
WPA2-Personal
WPA3-Personal
- Ethernet Ports1x 10 Gbps
1x 2.5 Gbps
1x 1.0 Gbps
Per Deco Unit
Supports WAN/LAN auto-sensing - USB Support1x USB 3.0 Port
FTP Server
Media Server
Samba Server - Buttons1x Reset Button
1x WPS
- Advanced FeaturesReboot Schedule
Tapo/Kasa Onboarding
IoT network & Device Isolation
Static Route Function
Node/Band Connection Preference - ProtocolsIPv4
IPv6 - Service KitsHomeShield
Learn More> - Parental ControlsHomeShield Parental Controls
Youtube Restriction
SafeSearch
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports - WAN TypesDynamic IP
Static IP
PPPoE
PPTP
L2TP - Quality of ServiceHomeShield QoS
QoS by Device - Cloud ServiceOTA Firmware Upgrade
TP-Link ID
DDNS - NAT ForwardingPort Forwarding
UPnP - IPTVIGMP Proxy
IGMP Snooping
Bridge
Tag VLAN - DHCPAddress Reservation
DHCP Client List
Server - DDNSTP-Link
- Management FeaturesDeco App
- Network Services Enabled by DefaultWeb Server
Manage and configure device through web (HTTP/HTTPS)
Port: 80/443 Protocol: TCP
DNS
DNS
Port: 53 Protocol: TCP & UDP
DHCP Server
IP address assignment (DHCP)
Port: 67 Protocol: UDP
App management
Manage and configure device through app
Port: 22 Protocol: TCP
Port: 20001 Protocol: TCP
Port: 30001 Protocol: TCP
Port: 20002 Protocol: UDP
- Dimensions (WxDxH)4.23 x 4.23 x 6.93 in (107.5 x 107.5 x 176 mm)
- Package ContentDeco BE68 (3-pack)
3 Deco BE68 units
1 RJ45 Ethernet cable
3 Power adapters
Quick Installation Guide
Deco BE68 (2-pack)
2 Deco BE68 units
1 RJ45 Ethernet cable
2 Power adapters
Quick Installation Guide
Deco BE68 (1-pack)
1 Deco BE68 unit
1 RJ45 Ethernet cable
1 Power adapter
Quick Installation Guide
- CertificationsCE, FCC, RoHS
- EnvironmentOperating Temperature: 0°C~40°C (32 °F~104 °F)
Storage Temperature: -40°C~60°C (-40 °F~140 °F)
Operating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH
