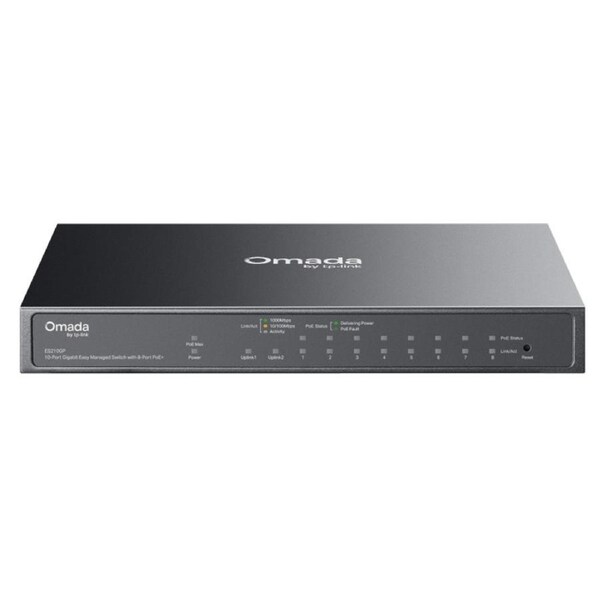

[ES210GP] Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+
TP-Link Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+ - Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+, Easy to Use, Cloud Centralized Management, Desktop, Wall-Mounting, Sturdy Metal Casing, Gigabit
- 8x Gigabit 802.3af/at-compliant PoE+ RJ45 ports
- 1x Gigabit RJ45 port, 1x Gigabit SFP/RJ45 Combo port
- 63W Power Budget, with up to 30W for each PoE port
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app
- Up to 820ft PoE**, Remote Camera Reboot , QoS, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
- Interface8x 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)
1x 10/100/1000 Mbps RJ45 Port
1x Gigabit SFP/RJ45 Combo Port
Auto-Negotiation/Auto MDI/MDIX - Fan QuantityFanless
- InstallationDesktop
Wall Mount - Physical Security Lock√
- Power SupplyDC Power Adapter (Output: 53.5V DC / 1.31A)
- PoE Ports (RJ45)Standard: 802.3af PoE and 802.3at PoE+ compliant
PoE Ports: 8 ports
PoE Budget: 63W available for all PoE+ ports, 30W max per port
Remote Camera Reboot
Up to 820ft (250m) PoE transmission distance** - Dimensions ( W x D x H )8.2 x 4.9 x 1.0 in (209 x 126 x 26 mm)
- Surge Protection±6kV
- Switching Capacity20 Gbps
- Packet Forwarding Rate14.88 Mpps
- MAC Address Table8K
- Packet Buffer Memory4 Mbit
- Jumbo Frame15 KB
- Quality of ServicePort-based/802.1p/DSCP QoS
8 Priority Queues
Priority Schedule Mode
- WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
- Port-Based Rating Limit
Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control - L2 FeaturesStatic Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
- 802.3x Flow Control
Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
Port Statistics
- Port Mirror Status
- Traffic Statistics
802.1ab LLDP - L2 MulticastIGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave - VLANMTU VLAN
Port-Based VLAN
802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID - Transmission MethodStore-And-Forward
- Omada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
- Centralized ManagementOmada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller - Cloud AccessYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
- Zero-Touch ProvisioningYes. Requires the use of Omada Cloud-Based Controller
- Management FeaturesWeb-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Unified Configuration
- CertificationFCC, CE, RoHS
- Package ContentES210GP
Power Adapter
Power Cord
Installation Guide
Rubber Feet - EnvironmentOperating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
