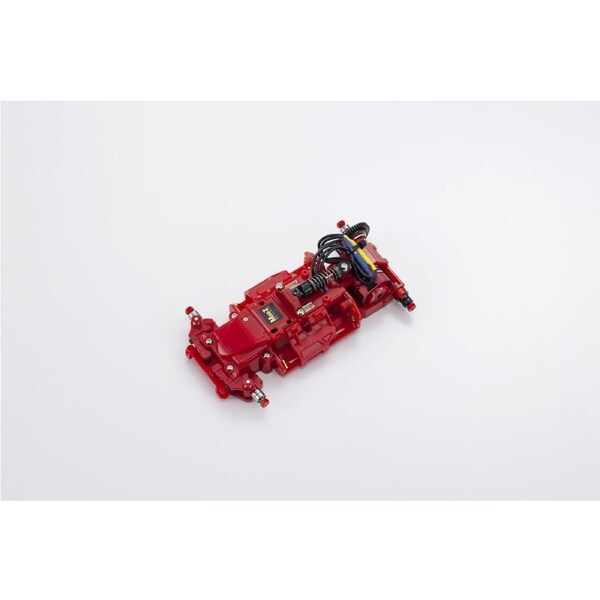

Kyosho MR-03EVO SP Chassis Set Red Limited W-MM 8500KV [32792SP]
Limited color version MR-03EVO Chassis Set installed with the popular SP spec parts!
The existing MINI-Z is installed receiver, servo and ESC by 1 controlled PCB unit. But the new MR-03EVO Chassis Set has separate receiver as 1 unit. By purchasing and installing an optional receiver unit depending on applied transmitter, it allows for Kyosho (EX-6R/KT-531P), KO Propo (EX-2/EX-RR), Futaba (T7PX/T7XC/T4PM), and Flysky (Noble NB4) transmitters. Further, by installing new CPU which control servo function only, it improves internal feedback of positioning control which is 11.2 times faster than existing VE PRO models. The newly developed control program realizes the best ever steering feeling in the MINI-Z history. The ESC also improves the response speed in maximum 100 times faster than existing VE PRO models. The included KYOSHO SPEED HOUSE XSPEED 85 (8500KV) brushless motor features a one-piece aluminum case that provides efficient heat dissipation for superior cooling. Unlike previous chassis sets, you can change to the brushed motor mode through the I.C.S manager to install an optional brushed motor. The I.C.S manager also allows more precise setting adjustments to be made. New advanced performance features in the MR-03EVO take the MINI-Z racing experience to the next level! The SP edition is equipped with nickel plated hex screws and an oil shock (MZW432) as standard. Also, the ball diff is specially finished with red anodizing. Furthermore, new upper arms with various caster angles (1 deg./2 deg./3 deg.) are included allowing wider setting range. The Red Limited version newly features red plastic parts throughout the chassis that are nicely coodinated with the red anodized motor and ball diff.
*First MINI-Z MR-03 Chassis Set that adopts separate ESC and receiver design.
*Includes new KYOSHO SPEED HOUSE XSPEED 85 brushless motor (8500KV).
*I.C.S manager features detailed steering and throttle parameter adjustment, as well as switching between brushless and brushed modes.
*Powered by independent CPUs for ESC and receiver, increased internal processing speed contributes to precision steering and throttle control.
*Equipped with ball bearings and red anodized Ball Diff Set II.
*Newly designed separate receiver cover and front upper arm mount make tread adjustment easier.
*Compatible with optional parts for the MR-03 chassis.
*Including newly developed front upper arms with caster angles (1 deg., 2 deg. and 3 deg.)
*Special version equipped with a colored chassis, which is only avialable in this chassis set.
Based on the MR-03VE PRO chassis, newly designed separate receiver cover and front upper arm mount make tread adjustment easier.
Receiver units currently available are for KYOSHO, KO and FUTABA transmitters and can be attached/detached by removing receiver cover from the upper chassis.
New KYOSHO SPEED HOUSE XSPEED 85 brushless motor (8500KV) features a one-piece aluminum case that realizes efficient heat dissipation.
Equipped with Ball Diff Set II that reduces weight of aluminum parts on the spur gear side and optimizes balance on the hub side. This is a must-have item and is used often in competition-level racing.
Full ball bearing specifications minimize drive loss
Length: 123.5mm
Width: 70～76mm
Height: 35mm
Wheelbase: 94.0mm（LL）
Tread F：61.5～63.0mm／R：61.5～63.0mm
Motor Mount: MM
Tires F: φ25×8.5mm (sold separately)/R: φ25×8.5〜11mm (sold separately)
Gear Ratio: 7.3、6.3、5.5、4.9：1
Weight: 135g (approx.)
Motor: KYOSHO SPEED HOUSE / XSPEED 85 (8500KV)
MR-03EVO-W-MM Factory assembled chassis with KYOSHO SPEED HOUSE XSPEED 85 8500KV brushless motor
Parts set for changing front tread
6T・7T・8T・9T Pinion gears
Wheel wrench
Tools for pinion gears
Spare wheel nuts
Receiver unit
Transmitter compatible with receiver unit
Auto Scale Collection (body set, wheels, tires)
AAA x 4 alkaline batteries or Ni-MH batteries for chassis
Batteries for transmitter
