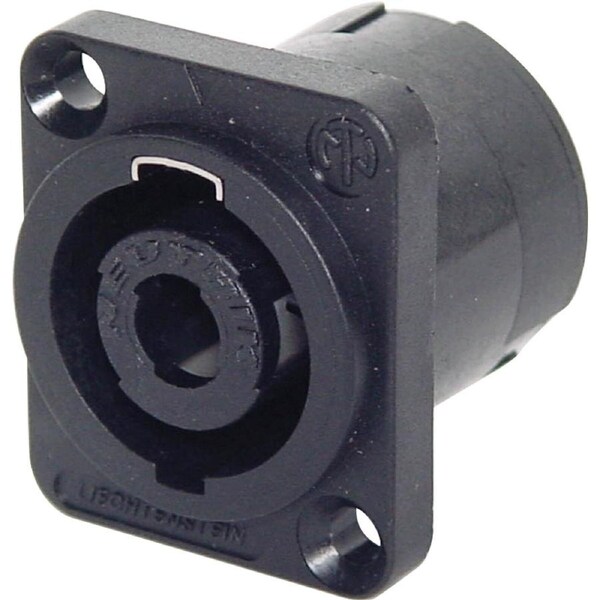

NEUTRIK NL4MP Speakon Socket Chassis Mount Airtight Design Black P0792
Heavy duty 4 pin Neutrik SpeakOn NL4MP connectors as used on professional amplifiers and speaker boxes. Handles up to 30A current. Genuine SpeakOn connector manufactured by Neutrik.
Attention: speakON is NOT to be used as an AC mains or power supply connector!
- Current rating 30A RMS
- Glass reinforced materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal insert in locking area
- Airtight design - optimised for speaker applications
4 Pin Speakon® Wiring Details
SpeakOn® or Lockable Speaker Connectors can be wired up in a variety of ways for different applications. Two positive and two negative pins are provided allowing two channels of audio to be passed via a single connector. In single channel applications only +1 and -1 will be connected.
Electrical
- Contact resistance: ? 3m? (inner) (after lifetime)
- Dielectric strength: 4kVdc (peak)
- Insulation resistance: >1 G? (after damp heat)
- Rated current per contact: 30A rms continuous
- Rated current per contact: 40A audio signal, duty cycle 50 %
- Rated voltage: 250V (Insulation)
- Lifetime: >5000 mating cycles
- Locking device: Quick Lock
- Chassis shape: D
- Layouts: Standard hole position, through holes
Material
- Contact plating: 4µm Ag
- Contacts: Bronze (CuSn6)
- Shell: Polyamide (PA 6 30 % GR) black
Environmental
- Flammability: UL 94 HB
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
