Reliance XR 4 Zone Alarm KIT
Reliance XR 4-Zone Alarm Kit

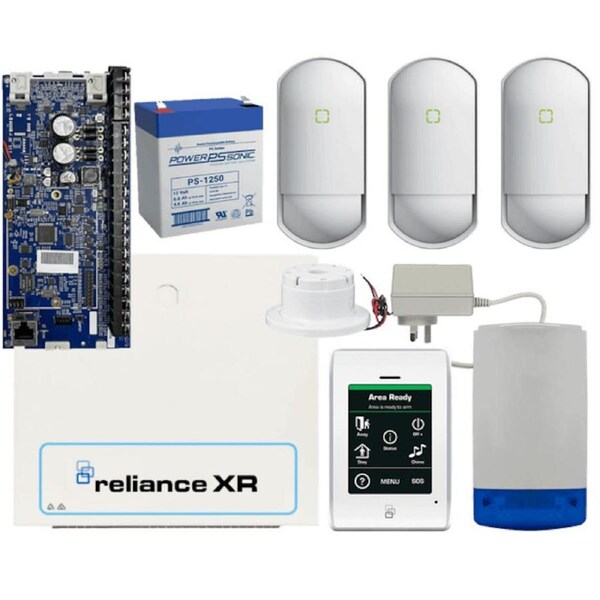

Kit Includes:
- 1 x Reliance XR PCB w/ metal enclosure.
- 1 x Reliance XR Touch.
- 3 x Optex Flip-X PIR.
- 1 x Reliance NX Combo Siren & Strobe.
- 1 x Secor Tophat Piezo.
- 1 x Powersonic 12VDC 5AH Battery.
- 1 x Datamaster 16VAC 1.5A Powerpack.
Systems
| Panel Type | Hybrid |
|---|---|
| Max No. of Modules | 32 |
Inputs
| Onboard Physical Inputs | 4 |
|---|---|
| Onboard Inputs total (Zone Doubling Required) | 8 |
| Max No. of Inputs Incl. Expanders | 8 hardwired + 16 wireless |
| Additional Inputs | 1: box tamper |
| EOL Resistor Values | 20 Ohm (2-wire smoke) 3.3 kOhm, 4.1 kOhm, 4.7 kOhm (alarm) 3.74 kOhm, 6.98 kOhm (zone doubling) |
Wireless
| Max No. of Wireless Transmitters | 16 |
|---|---|
| Receiver Type | Onboard - 433 MHz Legacy + LoNa 63 bit and 80plus compatible. |
Outputs
| Onboard Programmable Outputs | 3 |
|---|---|
| Additional Onboard Outputs | Siren/Bell |
| Max No. of Outputs | 32 |
System Capacity
| Areas | 4 |
|---|---|
| Users | 40 |
| User Permissions | 128 |
| Max Keyfobs | 8 |
| Max Tablets | 4 |
| Max Keypads | 16 |
Communication
| Ethernet Connection Specification | Supported Standard: IEEE 802.3u |
|---|---|
| Speed | 10BASE-T or 100BASE-TX |
| Duplex | Half-duplex and full-duplex |
| Cabling | FTP (foiled twisted pair) Cat 5e cable or better |
| Databus Type | Reliance XR, Reliance, NetworX (NX) |
| Reliance XR Bus | Type: 4 wire RS485 bus High common mode tolerance (25V) Range: 800m Recommended Cable: Belden 7201A, 3107A, 9842, or exact equivalent 2 pair twisted shielded cable designed for RS485 (refer to installation manual) |
Event Log
| Alarm Event Log | 1024 |
|---|
Mains Power Specifications
| Mains Input Voltage | 230 VAC +10%, -15%, 50 Hz 10% |
|---|---|
| Transformer Output | 16.3 VAC 24 VA / 16.3 VAC 48 VA |
| Current consumption at 230 VAC | 240 mA max |
Power Supply Specifications
| Power Supply Voltage | 13.8 VDC +/- 0.4 V |
|---|---|
| Power Supply Current | 2 A max. at 13.8 VDC +/- 0.4 V |
| Main Board Consumption | 130 mA at 13.8 VDC +/- 0.4 V |
| Maximum System Current Available | 2000 mA at 13.8 VDC +/- 0.4 V |
| Auxiliary Power Output (AUX. Power) | 13.8 VDC +/- 0.2 V, 1 A max. |
| Battery Power Output (BAT) | 13.8 VDC +/- 0.2 V, 350 mA max. |
| Battery Type | Lead acid rechargeable 7.2 Ah 12 V nominal |
| Minimum Voltage | 9.45 VDC |
| Maximum Voltage at Power Supply, Auxiliary Power Output, and Battery Power Output | 14.5 VDC |
| Battery Low Condition | From 11.3 VDC to 11.8 VDC |
| Battery Disconnect Voltage | 9.77 VDC |
| Maximum Ripple Voltage V, p-p | 200 mV typical, 400 mV max |
Physical (with Enclosure)
| Physical Dimension | 214 x 232 x 94mm (Enclosure only) 359 x 232 x 94mm (with Antenna) |
|---|---|
| Shipping Weight | 1435g |
| Colour | Beige |
| Material | Metal |
Physical (Board Only)
| Physical Dimension | 192 x 89 x 25 mm |
|---|---|
| Shipping Weight | 155g |
Environment
| Storage Temperature | -10oC to +55oC |
|---|---|
| Relative Humidity | 95% non-condensing |
| IP Protection Grade (in Enclosure) | IP30 |
Regulatory
| ANZ Compliance | CE, RCM |
|---|---|
| Overseas | EN50131 Grade 2, INCERT |
