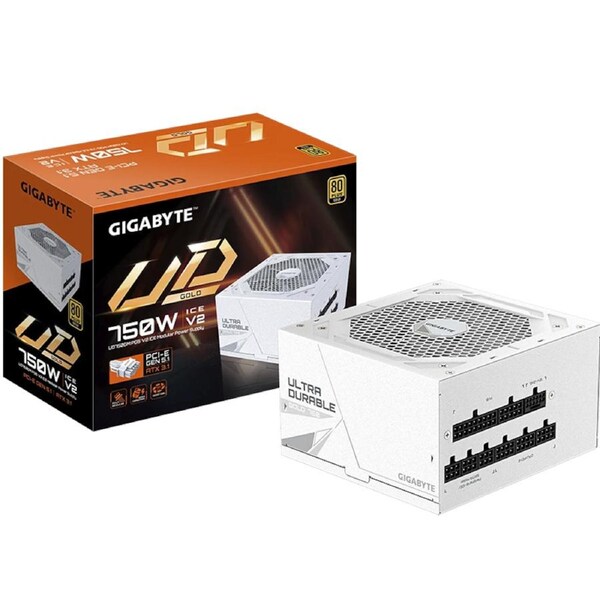

Gigabyte 750W UD750GM PG5 V2 ICE 80+ Gold ATX V3.1 PCIe Gen 5.1 Fully Modular Power Supply (GP-UD750GM PG5 ICE)
SPECIFICATIONS:
Type | Intel Form Factor ATX 12V v3.1 |
PFC | Active PFC (>0.9 typical) |
Input Voltage | 100-240 Vac (full range) |
Input Current | 15-6.5A |
Input Frequency | 60-50 Hz |
Output Capacity | 750W |
Dimensions | 150 x 140 x 86 mm |
Fan Type | 120mm Hydraulic Bearing(HYB) Fan |
80 PLUS | Gold |
Efficiency | 90% at typical load |
MTBF | >100,000 hours |
Protections | OVP/OPP/SCP/UVP/OCP/OTP |
Power Good Signal | 100-150ms |
Hold Up Time | >16ms |
Cable Type | Embossed, All white |
Connectors | ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 PCI-e 12+4 Pin x 1:700mm*1 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm*1 |
