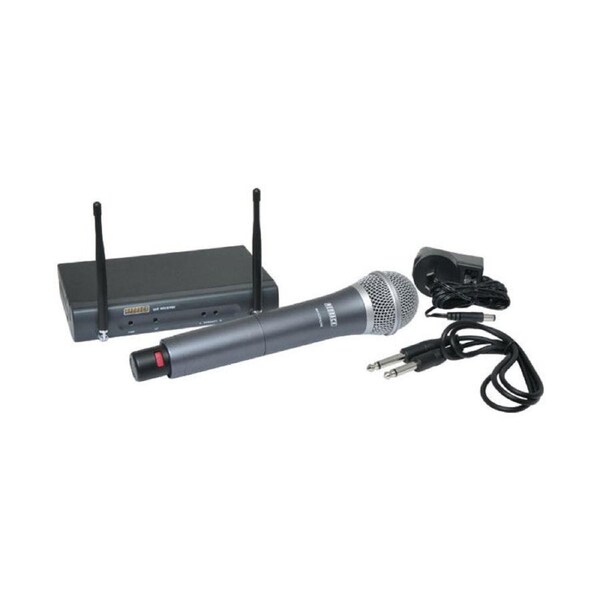

REDBACK C8867C UHF Wireless Microphone System With Handheld Mic 16 Ch
The perfect entry level 16 channel UHF wireless microphone system for clubs, restaurants, function centres, wedding ceremonies etc. It produces a clear, crisp vocal reproduction, whilst allowing freedom of movement. Supplied as a complete ready to go system with a handheld microphone transmitter. 16 channels allow interference free operation with multiple systems in the one location. Output signal is via 3 pin XLR balanced or 6.35mm unbalanced jack, suitable for connection to most amplifiers. Front panel LEDs indicate active antenna and audio signal presence.
Supplied complete with handheld transmitter microphone
Note: Requires 2 x AA batteries (sold separately)
- 16 Channels in 520 - 550MHz UHF Band
- RF and AF signal presence LEDs
- Tone squelch circuit for noise reduction
- Range up to 70m in ideal conditions
- 6.35mm unbalanced line/mic output
- 3 pin balanced XLR mic output
- Microphone transmitters require 2 x AA batteries (not included)
-
Specifications
-
Receiver
- Carrier Frequency Range: 520-550MHz UHF band
- Frequency Stability: ±0.005%
- Oscillator: PLL Synthesised
- Receiving Sensitivity: 10µV over 80dB S/N ratio
- Image and Spurious Rejection: 80dB minimum
- Selectivity: >50dB
- Modulation Mode: FM
- IF Frequency: 1st: 243.95MHz; 2nd: 10.7MHz
- Tone Signal: 32.768kHz
- S/N ratio: >94dB, at 48kHz deviation and 60dBµV antenna input
- Audio Frequency Response: 50Hz to 15kHz (±3dB)
- Total Harmonic Distortion: Less than 1.0% (at 1kHz)
- Power Supply: 12V d.c.
- Audio Output: Balanced and unbalanced outputs for Single channel / Switching diversity (Mic.=-20dB / Line = 0dB)
- Current consumption: 130mA (max.)
- Dimensions (mm) WxHxD: 170 x 32 x 106
- Carrier Frequency Range: 520-550MHz UHF band
- RF Power Output: 10mW (max.)
- Oscillation Mode: PLL synthesized, 16 Channel selectable
- Frequency Stability: ±0.005%
- Maximum Deviation: ±48kHz with limiting compressor
- Spurious Emission: >60dB below carrier frequency
- Total Harmonic Distortion: <1% (at 1kHz)
- Microphone Capsule: uni-directional electret condenser unit
- Battery: 3V d.c. (2 x 1.5V AA size batteries ) or 2.4V d.c. ( 2 x 1.2V AA size rechargeable batteries)
- Current consumption: 120mA +/- 5mA
- CH 1: 520.125MHz
- CH 2: 520.825MHz
- CH 3: 521.925MHz
- CH 4: 525.025MHz
- CH 5: 525.925MHz
- CH 6: 528.525MHz
- CH 7: 529.425MHz
- CH 8: 532.325MHz
- CH 9: 534.225MHz
- CH 10: 535.625MHz
- CH 11: 541.125MHz
- CH 12: 543.225MHz
- CH 13: 544.125MHz
- CH 14: 544.825MHz
- CH 15: 545.725MHz
- CH 16: 549.525MHz
- Use these channel selections when using multiple transmitters in the same area.
- Group A: Channels 1, 2, 3, 6, 7, 9, 10, 16.
- Group B: Channels 2, 5, 7, 8, 9, 10, 11, 14.
- Group C: Channels 1, 3, 5, 7, 9, 10, 11, 13.
- Group D: Channels 2, 4, 8, 10, 12, 14, 15, 16
