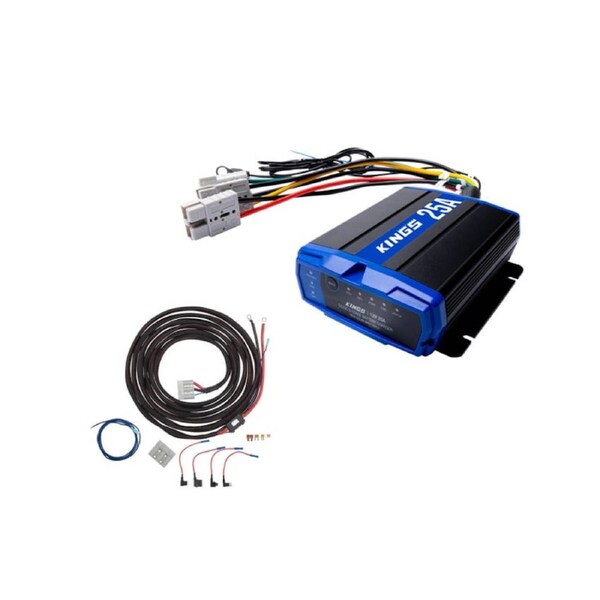

Kings 25A DCDC Charger + Premium Plug and Play DCDC Wiring Harness 6m 6AWG
Kings 25A DCDC Charger
The best way to have a dual battery system in your vehicle.
Max. Continuous Charging Current 25A
Max. Output Power 300W
Max. Input Current 27A
Vehicle Input Working Voltage Range (12V) 11.8 - 18V
Vehicle Input Working Voltage Range (24V) 23.6 - 32V
Min. Input start-up Voltage - Vehicle 10V to recognise battery
Solar Input Range 10 - 32V
Vehicle Input Working Voltage Range (Ign wire NOT fitted) 12.8 - 16V
Min. Input start-up Voltage - Vehicle (Ign Wire NOT fitted) 13.8V
Min. Aux Battery Voltage (Lithium) 0V (Wake Function)
Min. Aux Battery Voltage (Lead Acid) 4V
Idle Current Draw 15mA
Operating Temperature -20°C to 80°C
Dimensions (LxWxH) 151mm x 121mm x 44mm
Weight ~1kg
Temperature Compensation Yes ±18mV/°C
Housing Powder coated aluminium
LED Indicator lights Yes - for connection, charging status and errors
Battery Chemistry Selection Yes - Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Fuses required Yes - not supplied (50A Suggested)
IP Rating IP66
KINGS PREMIUM PLUG AND PLAY DCDC WIRING HARNESS
6m 6 AWG 50A Wiring Kit
Heavy-duty Braided 3-core cable
3 Pin Anderson-Style, perfect for BatBlock or Adventure Kings Plus Control Hub
Fuse taps and ignition wiring included
The Adventure Kings Premium Plug and Play Wiring Kit makes installing your dual battery system easy and hassle-free.
Cable Length 6m
Plug Style Three-pin Anderson-style plug
Construction Heavy-duty 6AWG wire
Fuse 50A inline Midi Fuse
Kit contents Replacement Midi fuse
4x Fuse Taps to suit Standard, Mini, Micro and Micro2 Fuses
Extra three-pin Anderson-Style plug
Additional 1m Ignition wire
Weight 2.64Kg
Warranty 1 Year
