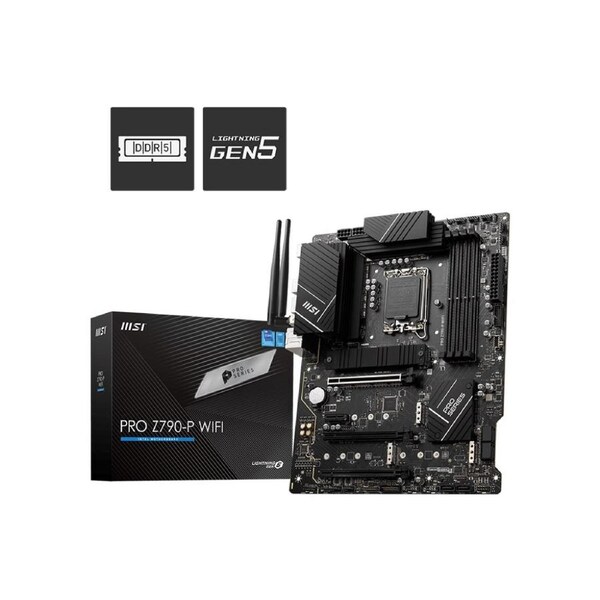

MSI PRO Z790-P WIFI Intel LGA 1700 ATX Motherboard, 4x DDR5 256GB, 3x PCI-E x 16 slot, 4x M.2, 6x SATA 6G, 4x USB 2.0(Rear), 4x USB2.0(Front)

MSI PRO Z790-P WIFI Intel LGA 1700 ATX Motherboard, 4x DDR5 256GB, 3x PCI-E x 16 slot, 4x M.2, 6x SATA 6G, 4x USB 2.0(Rear), 4x USB2.0(Front)

Chipset

INTEL Z790

CPU

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors

LGA 1700

Memory

4x DDR5, Maximum Memory Capacity 256GB

Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 7000+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP 3.0 OC

Supports Dual-Controller Dual-Channel mode

Supports non-ECC, un-buffered memory

Onboard Graphics

1x HDMI

Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz*

1x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz*

Slot

3x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

Audio

Realtek ALC897 Codec

7.1-Channel High Definition Audio

Storage

4x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

6x SATA 6G

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

USB

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

4x USB 2.0 ports (Rear)

4x USB 2.0 ports (Front)

2x USB 5Gbps Type A (Rear)

4x USB 5Gbps Type A (Front)

1x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Front)

1x USB 20Gbps Type C (Rear)

LAN

Intel 2.5Gbps LAN

Internal IO

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

6x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Tuning Controller connector(JDASH)

2x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

4x USB 5Gbps Type A ports

1x USB 10Gbps Type C ports

WIRELESS LAN & BLUETOOTH

Intel Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country's regulations and will be ready in Windows 11.

** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

LED FEATURE

4x EZ Debug LED
