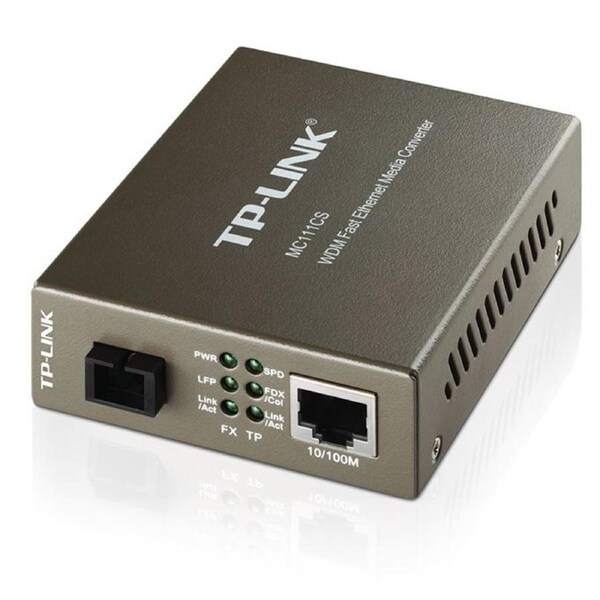

TP-Link MC111CS 10/100Mbps SC WDM Media Converter Monomode Simplex 10/100Base-TX, 100Base-FX standards Link Fault Passthrough and Far End Fault(LS)

TP-Link MC111CS 10/100Mbps WDM Media Converter

Complies with 802.3u 10/100Base-TX, 100Base-FX standards

Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely

Adopts WDM technology, transmitting and receiving data on one single fiber

MEDIA CONVERTER & MODULE

Standards and ProtocolsIEEE 802.3, IEEE 802.3u, IEEE 802.3x

Basic FunctionAdopts WDM technology

Half/Full-Duplex transfer mode for FX port

Full Duplex Flow Control (IEEE 802.3x)

Half Duplex Flow Control (Backpressure)

Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely

Extends fiber distance up to 20km

Ports1 100M SC/UPC port

1 100M RJ45 port (Auto MDI/MDIX)

Wave Length1550nm Tx/1310nm Rx

WDM TX1550nm

WDM RX1310nm

Network Media 10BASE-TUTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100 STP (maximum 100m)

Network Media 100BASE-TUTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100 STP (maximum 100m)

Network Media 100BASE-FXSingle-mode Fiber

LED IndicatorsPWR, FDX/Col, Link/Act, SPD

Dimensions (W*D*H)3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

Power SupplyExternal Power Adapter

Max Power Consumption2.49W

Safety & EmissionFCC, CE, RoHS

EnvironmentOperating Temperature: 0~40 (32~104)

Storage Temperature: -40~70 (-40~158)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

What This Product Does

The MC111CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Adopting WDM technology, MC111CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC111CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC111CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1550nm on transferring data and at 1310nm on receiving
