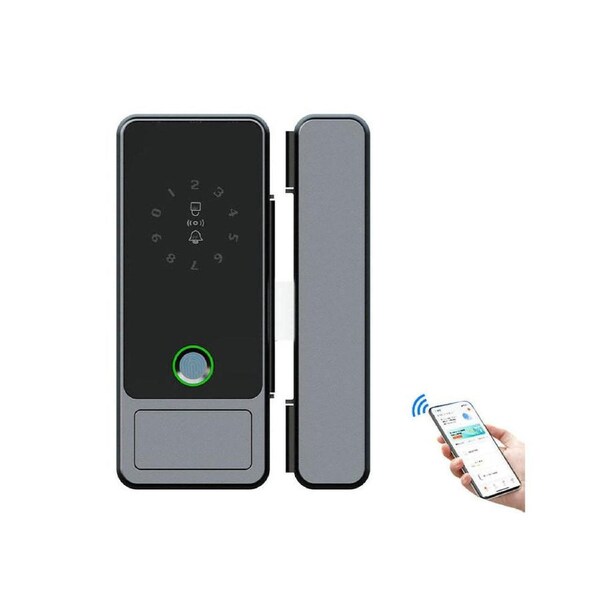

BDI Smart Glass Door Lock Keyless Entry with Fingerprint PIN IC Card and App Control
Upgrade your glass door security with this advanced biometric smart lock, designed for both push-pull and sliding doors. Supporting fingerprint, password, IC card, and Tuya APP (Bluetooth) unlocking, it offers a seamless keyless experience for your home or office.
The lock features a 3mm thick stainless steel double-groove locking tongue, providing exceptional strength and durability. Its innovative left/right interchangeable design allows for tool-free reversal, making installation quick and hassle-free. Even if the circuit fails or the battery dies, the flexible mechanical emergency key directly drives the lock tongue-ensuring you're never locked out.
Equipped with a metal gear stepper motor, this lock prevents motor burnout from stalling. The non-removable rear shell and reserved mounting holes enable fast installation without disassembly. Other smart features include anti-pry alarm, low battery reminder, fake password protection, and time-based always-unlock mode.
With a wide working temperature range (-20°C to 55°C) and ultra-low standby current (<30μA), this lock is reliable in various environments. It supports up to 100 fingerprints, 1,000 passwords/cards, and includes an emergency power port for unexpected battery drainage. Secure, smart, and sturdy-this is the perfect access solution for glass doors.
-
4 Unlock Methods - Fingerprint, password, IC card, and Tuya APP (Bluetooth).
-
Emergency Mechanical Key - Flexible structure drives lock tongue directly, works even without power or circuit failure.
-
3mm Stainless Steel Double Hook Lock Tongue - Extra thick and durable, ideal for push-pull & sliding doors.
-
Left/Right Interchangeable - Tool-free reversal without disassembly.
-
Metal Gear Stepper Motor - Prevents motor burnout from stalling.
-
Non-Removable Rear Shell & Fast Mounting - Install via reserved holes, no need to open the shell.
-
Emergency Power Port - USB power backup for dead battery situations.
-
Anti-Pry Alarm - Triggers alarm when forced open.
-
Fake Password Protection - Enter random digits before/after real password to prevent peeping.
-
Time-Based Always-Unlock Mode - Door stays unlocked during set hours, auto-locks afterward.
-
Low Power Reminder - Alerts before battery runs out.
-
Built-in Doorbell - Integrated bell function.
-
Voice Guidance - Supports English/Chinese switch.
-
Tuya APP Features - Share lock, temporary password, user management, unlock records, authorized time slots.
| Parameter | Specification |
|---|---|
| Dimensions | 176mm × 72mm × 36mm (Lock body: 44mm, Protrusion: 22mm) |
| Model | K18 |
| Door Gap Requirement | >3mm to <15mm |
| Compatible Glass Door Thickness | 10-12mm |
| Latch Type | Expanding double hook |
| Operating Voltage | 4-6V |
| Power Supply | 4 × AA batteries |
| Emergency Power Supply | Supported |
| Operating Temperature | -20°C to 55°C |
| Operating Humidity | ≤93% |
| Language | Chinese/English switchable |
| Working Life | ≥25,000 hours |
| Standby Current | <30μA |
| Housing Material | Front: ABS, Rear: Aluminum alloy |
| Latch Material | 304 stainless steel |
| Fingerprint Capacity | 100 fingerprints |
| DPI | ≥560 |
| Password + Card + Other Capacity | 1000 entries |
| Applicable Doors | Single-swing door, double-swing door |
| Unlocking Methods | Fingerprint, Password, Card |
| Product Weight | 2.5kg per unit |
Packing:
1 x 1:1 Hole Diagram
2 x body size
2 x fixed steel plates
2 x Physical Key
2 x magnetic card
1 x Instruction manual
1 x Graffiti Manual
