Notes:
Before using this product, check the applicable local laws relating to your intended use of the product on roads and road related areas
Wheel Size (Please Read the Printed on The Tire Wall) Option:
For 27.5 Inch
27.5 Inch wheel with a width between 1.75 to 2.25 Inch
Specifications
Rim Motor: 72V 3000W Brushless Direct-Drive Hub Motor
Torque: 90 N.M
Maximum Speed: 90 km/h
Display: Intelligent Colorful LCD Panel Display
Controller: Intelligent Motor Controller, Power Current is 80A
Riding mode: Twist Throttle Electric Assist Mode
Rear Fork Width Requirement:135 - 142mm
Suitable for Disk Brake (6 Holes to Mount the Disc Rotor)
Brake levers: Aluminum Alloy Wuxing E-brake Lever
Rim & Spokes: Alloy Double Wall Rim, Steel Spokes
Freewheel: 16T Single Speed Freewheel
72V 30AH Triangle Frame Bagged Battery
Riding Range: Up to 50 km
12 Months warranty on Motor & Battery

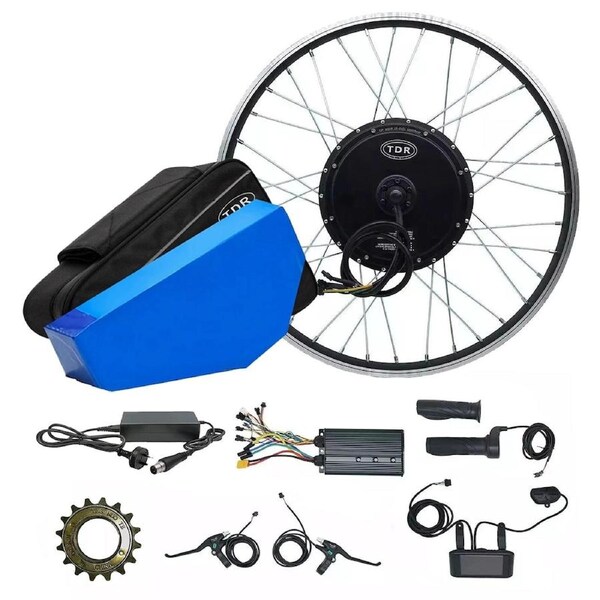

Package Included :
1 x 72V 3000W Rear Rim Motor
1 x Intelligent Motor Controller - Connection XT90 Plug
1 x Pair of E-Brake Levers
1 x Twist Throttle
1 x LCD Display
1 x Cable Ties Set
1 x Manual
1 x 16T Single Speed Freewheel
1 x 72V 30AH Triangle Frame Bagged Battery
1 x Australian Approval Charger
Important Notes
Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).
Please check your rear fork width (135 - 142mm) to make sure the motor hub can be fitted into it.
Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal. 3000W Motor is not path legal, this product is recommended for off-road or private property use only.
Please noted that the rear motor hub will only suit single-speed thread-on freewheel
Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.
It is strongly advised to utilize twin piston calipers on bicycles to enhance braking performance and safety.
