Notes:
Before using this product, check the applicable local laws relating to your intended use of the product on roads and road related areas
For 27.5 Inch
27.5 Inch wheel with a width between 1.75 to 2.25 Inch
Specifications
Rim Motor: 48V 500W Brushless Gear Hub Motor
Torque: 55 N.M
Wiring Method: Waterproof Wire Connection System
Maximum Speed: 40 km/h
Display: Intelligent Colorful LCD Panel Display
Controller: Intelligent Motor Controller, the Current is 22±1A
Riding mode: Thumb Throttle Electric Assist Mode, Pedal Assist Mode
Rear Fork Width Requirement:135 - 142mm
Suitable for Disk Brake (6 Holes to Mount the Disc Rotor) and V-brake System
Brake levers: Aluminum Alloy Wuxing E-brake Lever
Rim & Spokes: Alloy Double Wall Rim, Steel Spokes
PAS Sensor: 12 Magnets Pedal Assist Sensor
Freewheel: Shimano TZ500 Thread-on Freewheel
Riding Range (Depend on Battery): 48V 15AH (Up to 60 km with Pedal Assist Mode)
12 Months warranty on Motor & Battery

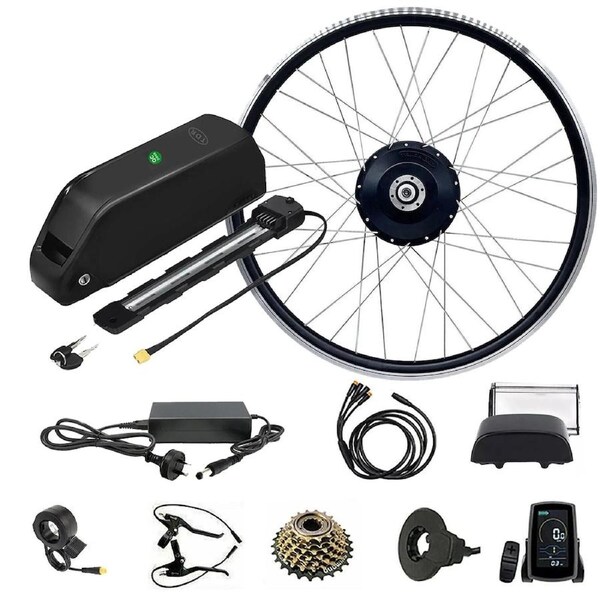

Package Include:
1x 48V 500W Rear Rim Motor
1x Intelligent Motor Controller
1x Controller Box
1x Pedal Assist Crank Sensor
1x Pair of E-Brake Levers
1x Thumb Throttle
1x LCD Display
1x Cable Ties Set
1x Manual
1x 6 or 7 Speed Freewheel
Battery with Charger
Important Notes
Please check your wheel size before purchasing and you can find your wheel size from the printed on the tire wall (side).
Please check your rear fork width (135 - 142mm) to make the motor hub can be fitted into it.
Please check the size of the battery, bag, and frame size before purchasing to make sure the battery can be fitted into your bike frame.
Professional installation skills are needed. Please notice that basic tools will be required when installing this DIY Kit. Otherwise, please seek a local mechanic for installation.
Our 500W system requires a 48 Volt electrokinetic cell battery with a maximum continuous discharge current of not less than 22A and a nominal capacity of not less than 10Ah.
The AU regulations dictate that a kit must not exceed the rated power of 250W to be road-legal. 500W Motor is not path legal, this product is recommended for off-road or private property use only.
Please noted that the rear motor hub will only suit thread-on freewheel which is up to 7 Speeds, a freewheel is included.
Speed limit and riding ranges depend on the rider's weight, road, and weather conditions.
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road-related areas.
