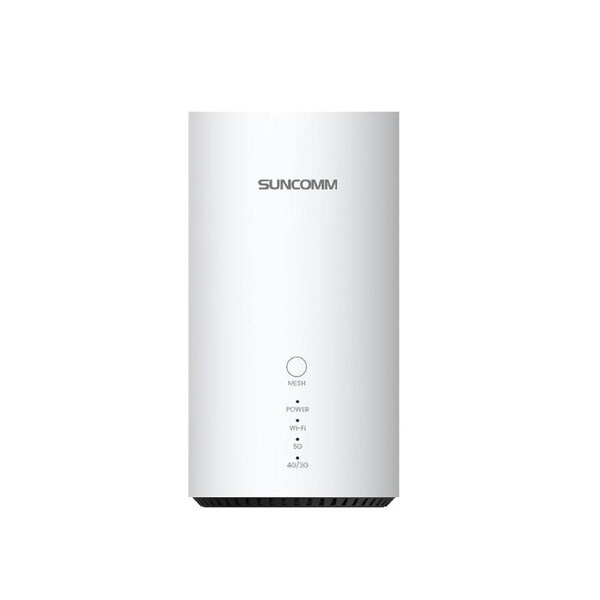

Next-Gen WiFi 7 BE7200 5G Router SIM Card Slot 320MHz Bandwidth VoLTE/VoIP Mesh Networking
The SDX75 is a multi-user 5G wireless gateway designed for home or small office environments. It integrates 5G NR/LTE cellular and high-speed Ethernet uplink capabilities, providing flexible, high-speed data access and voice services. This device allows multiple Wi-Fi users (e.g., laptops, smartphones, smart home devices) to connect to the internet simultaneously, enabling quick setup and sharing of a network connection via 5G or Ethernet from anywhere.
-
High-Performance 5G Platform: Built on the Qualcomm Snapdragon X75 platform, supporting 3GPP Release 17.
-
High-Speed Connectivity:
-
5G Network: Downlink up to 6Gbps, Uplink up to 900Mbps.
-
Wi-Fi 7 Technology: Supports the latest Wi-Fi 7 (802.11be), with dual-band concurrent (2.4GHz & 5GHz) speeds up to 6.4Gbps.
-
-
Enhanced Coverage: Supports 4x4 MIMO and Easy Mesh R4 for seamless whole-home roaming by connecting with other Mesh routers.
-
Multi-User Support: Supports up to 256 Wi-Fi client connections.
-
Flexible Network Access: Uses 5G (SA/NSA) and LTE as primary access, with Gigabit/2.5G Ethernet ports as backup or uplink.
-
Optional Voice Service: Features an RJ11 telephone port, optionally supporting VoLTE/VoNR/VoIP.
-
Cellular Technologies: 5G NR, LTE, UMTS
-
Wi-Fi Standard: 802.11 a/b/g/n/ac/ax/be (Wi-Fi 7)
-
Supported Bands:
-
5G NR: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71/n75/n76/n77/n78
-
LTE FDD: B1/B3/B5/B7/B8/B20/B28/B32/B71
-
LTE TDD: B38/B40/B41/B42/B43
-
UMTS/WCDMA: B1/B3/B5/B8
-
-
Max. Data Throughput:
-
5G NR: DL 6Gbps / UL 900Mbps
-
LTE: DL 1.6Gbps / UL 200Mbps
-
Wi-Fi: Dual-Band Concurrent up to 6.4Gbps
-
-
Antenna Technology: Receive Diversity, DL 4x4 MIMO
-
Wi-Fi Features: DBDC BE7200, Easy Mesh R4, up to 256 clients
-
Chipset: Qualcomm Snapdragon X75
-
Storage: 16Gb eMMC + 8Gb LPDDR4
-
Power Consumption: < 24W
-
Power Supply: DC 12V/2A
-
SIM Card: 4FF (Nano-SIM) slot, supports 3V/1.8V, push-pull mechanism
-
Ethernet Ports:
-
Default: 2 x 1Gbps Auto-Adaptive Ports (1x WAN + 1x LAN)
-
Optional: 1 x 2.5Gbps + 1 x 1Gbps Ports
-
-
USB: 1 x USB 2.0 Port
-
Voice: 1 x RJ11 Port (Optional support for VoIP/VoLTE/VoNR)
-
Antennas: 6x internal LTE/NR antennas, 2x optional TS-9 external antenna connectors
-
Buttons: Power, Reset, WPS (also for Easy Mesh)
-
LED Indicators: Power, Wi-Fi, 5G, 4G
-
Software Features: IMEI modification, Band locking, APN settings, VPN (PPTP/L2TP/GRE), IP Passthrough, Carrier Aggregation, AT commands, SMS.
-
Easy Connection: Supports NFC for one-tap Wi-Fi connection.
-
Web UI Languages: English, French, Portuguese, Spanish.
-
HTTP: Web management interface supported.
-
ESD Protection: Contact ±8KV, Air ±10KV.
-
Operating Temperature: 0°C to +45°C.
-
Reset: Pinhole reset button.
