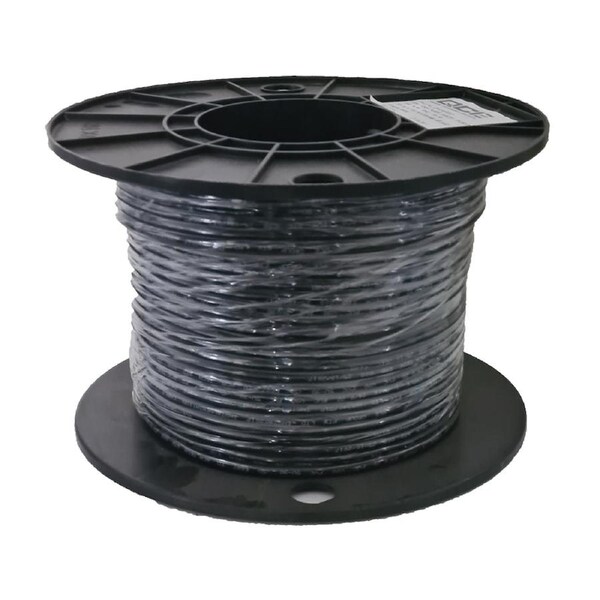

0.5mm 7/0.30 2 Pair Instrumentation Cable O/S (100mtr Roll)
This 0.5 mm² 2‑Pair Instrumentation Cable is engineered for high‑reliability signal and instrumentation applications, providing robust screening and conductor design to support sensitive measurement, control and alarm circuits. With two individually insulated pairs in an overall screened construction, this cable is ideal for installations where noise suppression and signal integrity are critical - such as process control, building automation, security systems and instrumentation wiring.
Key Features
- Two‑pair (2 ×) conductor format in one jacket, enabling two discrete circuits or paired signals in one cable run.
- Overall solder‑tinned copper drain and aluminium foil screen around the pairs for effective shielding against electromagnetic interference.
- Conductor stranding: 7 strands of 0.30 mm diameter (7/0.30) for each core, providing enhanced flexibility for ease of routing.
- Nominal cross‑section of each conductor: 0.5 mm² (suitable for instrumentation and control wiring, not for mains power).
- Robust PVC 5V-90 sheath and insulation rated V90HT
- Black outer sheath colour with clearly marked white/black numbered cores for identification ease during termination.
- Designed for standard 100 metre reels/rolls for convenience in panel wiring or long‑run instrumentation applications. Longer rolls may be available on request.
Specifications
- Conductor size: 0.5 mm² (7/0.30 mm stranding) annealed copper wire
- Pairs: 2 pairs (total 4 cores) twisted
- Core Colours: Black and White
- Voltage: 110V AC / 150V DC
- Screening: Overall aluminium tape screen and polyester mylar tape lapping
- Drain Wire: Tinned Copper 7/0.25
- Sheath material: PVC V90HT
- Outer diameter: ~7.5 mm nominal
- Sheath rating: 240V radial thickness sheath (not for mains connection)
- Standard compliance: AS1125 (for conductor) and AS/NZS 3808 (for PVC)
- Reel length: 100 mtr
- Sheath colour: Black
Applications
- Instrumentation and control wiring in manufacturing plants and process control systems
- Signal and alarm wiring in building automation, fire‑alarm, security and access control systems
- Low‑voltage measurement circuits in switchboards and automation cabinets
- Wiring for PLCs, sensors, transmitters where noise reduction and signal fidelity are required
- Suitable for indoor or protected outdoor use (within containment or conduit, not exposed to direct weather)
With reliable screening and well‑specified conductors this 0.5 mm² 2‑Pair Instrumentation Cable offers a professional‑level solution for instrumentation and low‑voltage signal wiring applications. Whether you're wiring automation panels, control systems or signal networks, this cable delivers integrity, durability and peace of mind for sensitive installations.
