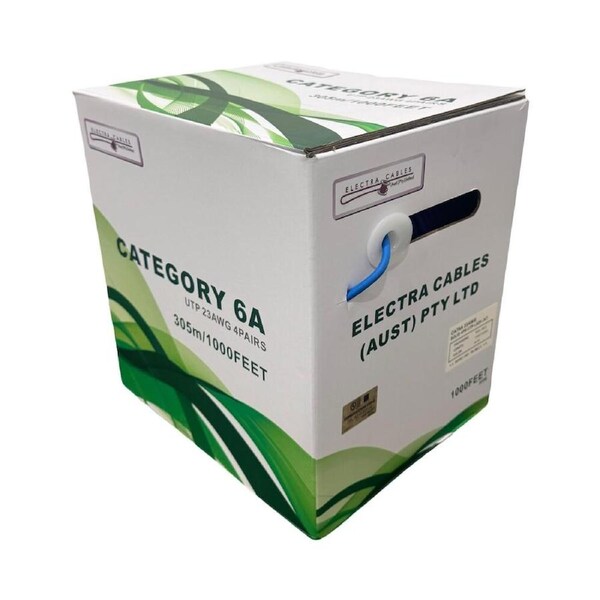

Electra Cables CAT6A Data Cable Blue (305mtr Roll)

The Electra Cables CAT6A-BOXBLU is a premium-grade CAT6A (Augmented Category 6) data cable, engineered to support 10 Gigabit Ethernet and high-speed data transmission in demanding network environments. Supplied on a 305-metre reel in an easy pull box, this blue UTP cable features solid bare copper conductors and a low-smoke zero-halogen (LSZH) jacket-making it ideal for commercial, industrial, and enterprise backbone installations where performance, safety, and compliance matter.

Whether you're running structured cabling in offices, data centres, or smart buildings, this CAT6A cable offers exceptional performance across long distances and meets stringent Australian standards for data communications.

Key Features

• CAT6A Performance - Supports 10GBASE-T Ethernet up to 100 metres with reduced crosstalk and superior signal integrity
• Solid Bare Copper Conductors - Ensures minimal signal loss and long-distance reliability
• 305 Metre Reel - Supplied in a pull box for tangle-free deployment on site
• Blue LSZH Jacket - Halogen-free outer sheath enhances fire safety with reduced smoke and toxic emissions
• Spline Separator - Internal cross filler provides consistent pair spacing and crosstalk isolation
• Standards Compliant - Complies with ANSI/TIA-568.2-D, ISO/IEC 11801, and AS/NZS standards for structured cabling
• Internal & Commercial Use - Suitable for backbone cabling, data outlets, patch panels, and telecommunications enclosures

Specifications

• Model: CAT6A-BOXBLU
• Cable Category: CAT6A UTP
• Length: 305 metres
• Conductor Type: Solid bare copper
• Conductor Size: 23 AWG
• Shielding: Unshielded (UTP)
• Jacket Material: Low Smoke Zero Halogen (LSZH)
• Jacket Colour: Blue
• Insulation Material: Polyolefin
• Internal Separator: Star-shaped spline for pair separation
• Operating Temperature: −20°C to +60°C
• Max Bandwidth: 500 MHz
• Data Rate Support: Up to 10 Gbps (10GBASE-T)
• Compliance:
  • ANSI/TIA-568.2-D
  • ISO/IEC 11801 Class EA
  • AS/NZS 3080
  • RoHS & REACH Compliant

Applications

• Data centres and comms rooms
• Office structured cabling networks
• Backbone cabling between switches and patch panels
• High-speed workstations and servers requiring 10G Ethernet
• PoE, VoIP, and HD IP surveillance systems
• Environments requiring LSZH-rated cabling for fire safety compliance

The Electra Cables CAT6A-BOXBLU delivers outstanding 10G performance, fire-safe construction, and dependable copper quality-making it the perfect choice for commercial-grade networks where performance and compliance cannot be compromised. Trusted by electricians, network integrators, and ICT professionals across Australia.
