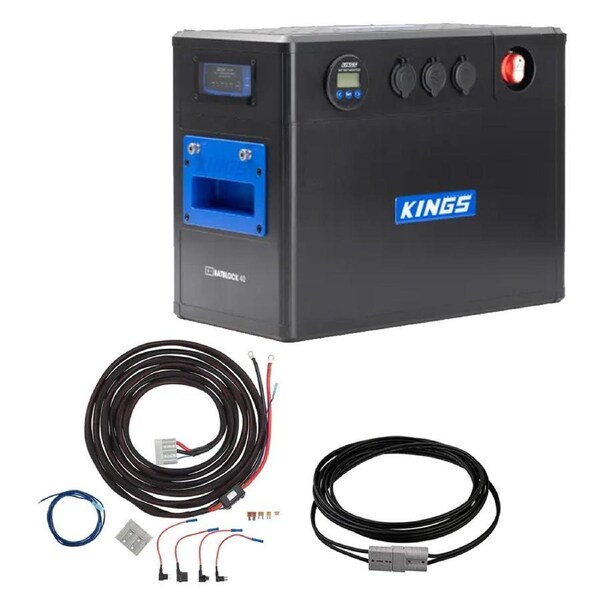

Kings BatBlock40 12V Plug n Play Battery Box + 6m 6AWG DCDC Wiring + 6m Lead
KINGS BATBLOCK40
Max. Supported Battery Size - 330 x 173 x 220 mm
Max. Continuous DCDC Charging Current 40A
MPPT Solar Input Range 10 - 32V
Compatible Battery Types Lithium (LiFePO4), AGM, wet lead acid, gel, calcium with push button selection
Battery Monitor Display YES - Backlit LCD (V, A, W, Ah, H, °C, %)
Shunt YES - 500A rated
Input / Output 2x 50A Combined rating quick connect plugs (input/output), 120A rated M8 threaded terminals
Inputs 1x Quick connect solar input 1x triple quick connect alternator input
Outputs 1x 12V cig socket, 2x USB A, 1x USB QC, 1x USB C PD
Isolator Switch YES - with 200A fuse
Tie Down Points YES - 4x M8 removable shoulder bolts
Case Material Reinforced ABS
Weight 6.4kg
Dimensions 441 x 236 x 340 mm
Battery not included
PLUG AND PLAY DCDC WIRING HARNESS
6m 6 AWG 50A Wiring Kit makes installing your dual battery system easy and hassle-free.
Cable Length 6m
Plug Style Three-pin Anderson-style plug
Construction Heavy-duty 6AWG wire
Fuse 50A inline Midi Fuse
Kit contents Replacement Midi fuse
4x Fuse Taps to suit Standard, Mini, Micro and Micro2 Fuses
Extra three-pin Anderson-Style plug
Additional 1m Ignition wire
Weight 2.64Kg
Warranty 1 Year
6M SOLAR EXTENSION LEAD
2.5MM2 COPPER
Length 6m
Conductor Material Multi-Strand Copper 51x0.25
Conductor Cross Sectional Area (each wire) 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Diameter 9.3mm
Recommended Maximum Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Anderson-style Quick Connect
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Max Rated Voltage 300V
