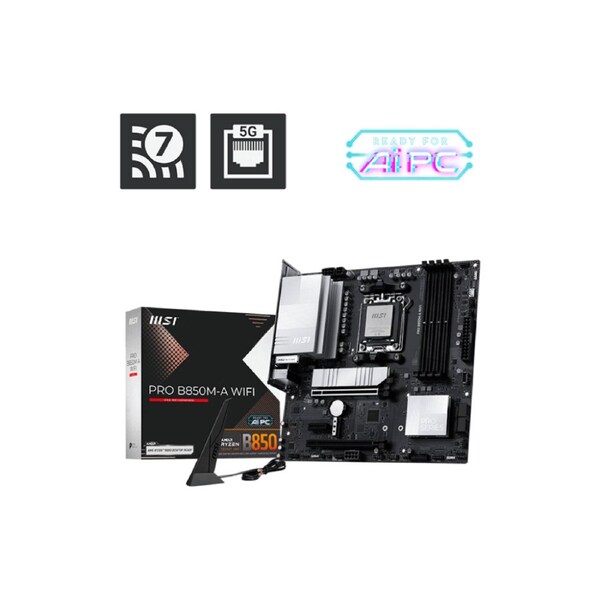

MSI PRO B850M-A WIFI MOTHERBOARD
| Model Name | PRO B850M-A WIFI |
| Chipset | AMD B850 |
| CPU Support | AMD Ryzen(TM) 9000 / 8000 / 7000 Series Desktop Processors |
| Socket | AM5 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen(TM) 9000 Series Processors max. overclocking frequency: * 1DPC 1R Max speed up to 8200+ MT/s * 1DPC 2R Max speed up to 6400+ MT/s * 2DPC 1R Max speed up to 6400+ MT/s * 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
| Onboard Graphics | 1x HDMI(TM) Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* |
| Slots | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen(TM) 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen(TM) 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen(TM) 8500/ 8300 Series processor) |
| Audio | Realtek(R) ALC897 7.1-Channel High Definition Audio |
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot * Supports up to PCIe 5.0 x4 (For Ryzen(TM) 9000/ 7000 Series processors) * Supports up to PCIe 4.0 x4 (For Ryzen(TM) 8000 Series processors) M2_2 slot * Supports up to PCIe 4.0 x4 * Supports up to PCIe 4.0 x2 (For Ryzen(TM) 8500/ 8300 Series processors) |
| RAID Support | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB Ports | 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) |
| LAN | Realtek(R) 8126VB 5G LAN |
| Internal I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth(R) 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country's regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
| LED Features | 4x EZ Debug LED 1x EZ Memory Detection LED |
| OS Support | Windows(R) 11 64-bit |
