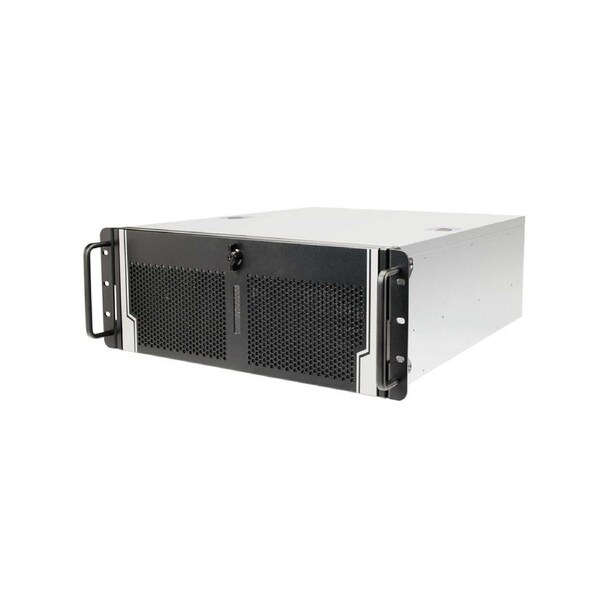

INWIN R400N 4U RACK SERVER CHASSIS
| Specification | |
|---|---|
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5") |
| Drive Bay | * External: 5.25" x 3, 3.5" x 1 * Internal: 3.5" x 3, or 3.5" x 2 & 2.5" x 1 |
| Power Supply | Supports: * PS2 single PSU * 550W/800W/1200W/1600W 1+1 CRPS 80 Plus Platinum |
| Indicators | Power status, HDD, LAN activity LEDs |
| Front Control Panel | Power switch, system reset, USB 2.0 x 2 |
| Chassis Security | Intrusion switch (optional) |
| Cooling Fans | * 120 x 25mm PWM front fan x 1, 3500RPM * 80 x 25mm PWM rear fan x 2 (optional), 4200RPM * 80 x 25mm PWM rear fan x 2 (optional), 4500RPM |
| Expansion Slot | Full height PCIe slots x 8 |
| Material | * Material: SGCC * Thickness: 1.2mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 515x 430 x 174.8mm (20.3" x 16.9" x 6.9") |
| Package Dimensions (DxWxH) | 696 x 610 x 310mm |
| Weight (Chassis Only) | * Net weight: 11.5kg * Gross weight: 14.7kg |
| Cubic Feet | 4.65 |
