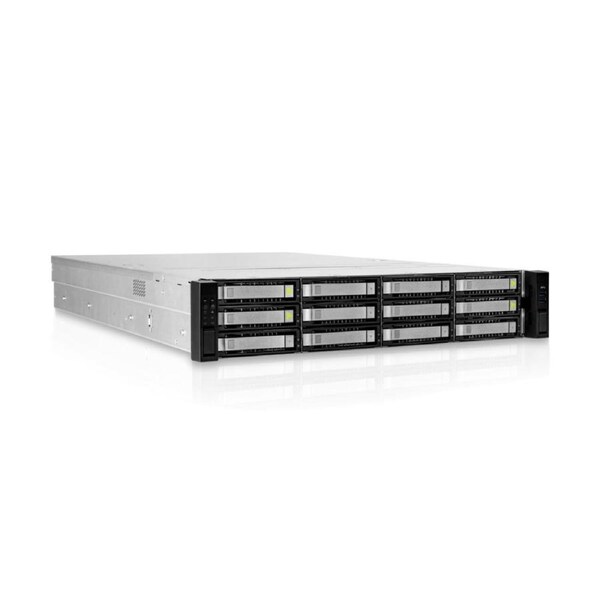

INWIN RS212 2U RACK SERVER CHASSIS/2x1200W RED PSUs/12x3.5" HOT SWAP MINI SAS HD
| SPECIFICATIONS & DETAILS | |
| Model Name | |
| IW-RS212-07 | |
| Specifications | |
| MODEL SERIES | 2U NVMe Hybrid Storage Server |
| Industry Standard | EIA-RS310D |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") |
| Drive Bay | * External 2.5"/3.5" hot-swap trays x 12 (optional U.2 NVMe SSD tray x 4) * Rear 2.5" screwless hot-swap SSD trays x 2 (supports SAS 12Gbps) |
| Power Supply | * Form factor: 80 Plus Platinum * 1200W Redundant PSUs |
| Indicator | Power LED, LAN1/LAN2/LAN3/LAN4 LED, system LED, ID LED, HDD LED |
| Front Control Panel | Power on/off, reset, NMI, ID SW, USB 3.0 x 2 |
| Backplane Type-1 | * Host: Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 4 * HDD: SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4 |
| Backplane Type-2 | * Host: Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 4 * HDD: SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4 |
| 12Gbps Expander Module | Supports LSI 3 x 36R expander |
| Cooling Fan | 80 x 38mm PWM hot-swap fans x 4, 12000RPM Modular design with anti-vibration |
| Expansion Slot | Low-profile PCIe slots x 7 |
| Material | * Material: SGCC * Thickness: 1.0mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 660 x 448 x 87.5mm (26 x 17.6" x 3.4")" |
| Package Dimensions (DxWxH) | 845 x 595 x 223mm |
| Weight (Chassis Only) | * Net weight: 13.09kg * Gross weight: 16.51kg |
| Cubic Feet | 3.96 |
| Container Information | Single packing with pallets: * 20': 160pcs * 40': 368pcs * 40' HQ: 414pcs |
| 12Gbps Backplane Specifications | |
| Backplane Type-1 | Mini-SAS HD & Slimline backplane |
| Dimension (W x H) | 405mm x 72.3mm |
| Backplane Type | Active with expander onboard |
| Host Interface | Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 4 |
| HDD Interface | SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4 |
| Backplane Type-2 | Mini-SAS HD & OCuLink backplane |
| Dimension (W x H) | 405mm x 72.3mm |
| Backplane Type | Active with expander onboard |
| Host Interface | Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 4 |
| HDD Interface | SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4 |
