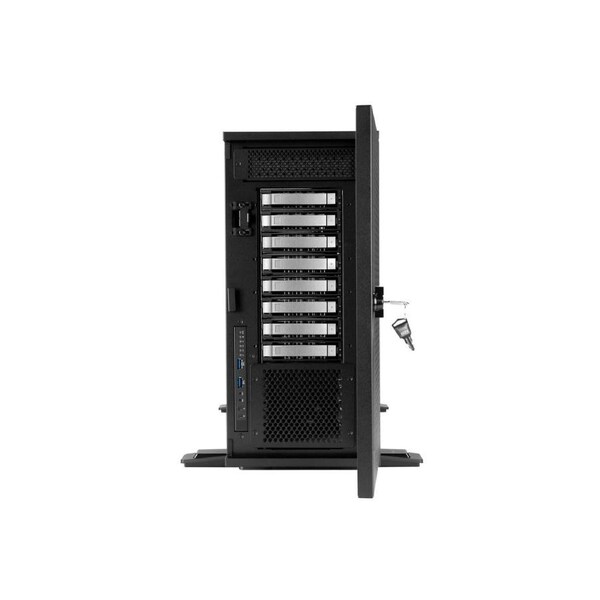

PLV Tower Chassis 550W REDUNDANT PSU PLATINUM - R1CA2551B
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
| M/B Form Factor | ATX(12" x 9.6"), CEB(12" x 10.5"), EEB(12" x 13") |
| Drive Bay | * External 2.5"/3.5" hot-swap trays x 12 (pre-installed x 8), 5.25" x 1 * Internal 2.5" x 2 or 3.5" x 1 |
| Indicators | Power status, HDD LED, LAN1/LAN2/LAN3/LAN4 LED, ID LED, system fail activity LED |
| Front Control Panel | Power switch, ID switch, system reset, NMI, USB 3.0 x 2 |
| Chassis Security | Supports padlock loop and Kensington lock slot |
| Backplane Type-1 | Mini-SAS HD (SFF-8643), 12Gbps supported x 3 (pre-installed x 2) |
| Backplane Type-2 | Mini-SAS HD (SFF-8611) & OCuLink, 12Gbps supported x 3 (pre-installed x 2) |
| Cooling Fans | * Middle: 92 x 25mm PWM fan x 3 * Rear: 120 x 25mm PWM fan x 1 * Rear fan kit for GPU thermal, 80x38mm, 8300RPM |
| Expansion Slot | Full-height PCIe slot x 9 |
| Material | * Material: SGCC * Thickness: 1.0mm |
| Maximum Capacity | * GPU length: 330mm * CPU heatsink height: 145mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rail |
| Product Dimensions (DxWxH; Chassis Only) | 589.7 x 200 x 430mm (23.22" x 7.87" x 16.93") |
| Package Dimensions (DxWxH) | 860 x 610 x 360mm |
| Weight (Chassis Only) | * Net weight: 16.95kg * Gross weight: 21.28kg |
| Cubic Feet | 6.67 |
| Container Information | Single packing with pallets: * 20': 100pcs * 40': 220pcs * 40' HQ: 264pcs |
12Gb/s Backplane Specifications
| Backplane Type-1 | Mini-SAS HD & OCuLink backplane |
| Dimension (W x H) | 111.5mm x 111.5mm |
| Backplane Type | Passive |
| Host Interface | Mini-SAS HD (SFF-8643) x 1, OCuLink (SFF-8611) x 2 |
| HDD Interface | SAS/SATA x 4 or SAS/SATA x 2 and NVMe SSD x 2 |
12Gbps Backplane Specifications
| Backplane Type-2 | Mini-SAS HD backplane |
| Dimension (W x H) | 111.5mm x 111.5mm |
| Backplane Type | Passive |
| Host Interface | Mini-SAS HD (SFF-8643) x 1 |
| HDD Interface | SAS/SATA HDD x 4 |
