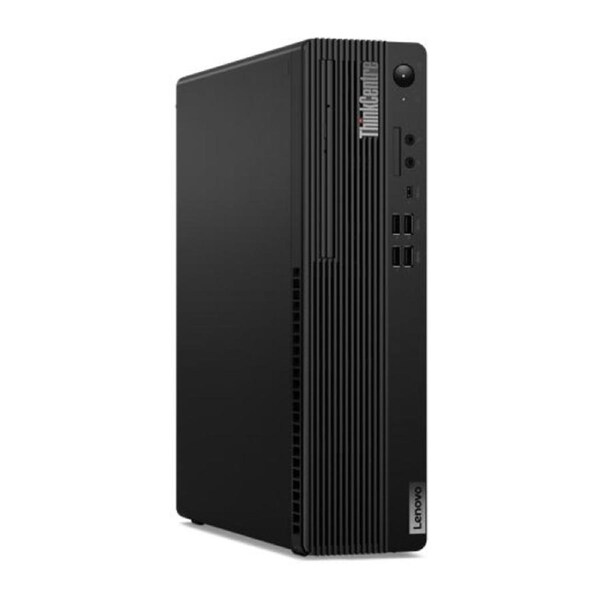

LENOVO ThinkCentre M70s G5 SFF Desktop PC i5-14400 16GB DDR5 512GB SSD Windows 11 Pro 3yrs Onsite Wty WiFi6E LAN UHD GPU Keyboard Mouse
LENOVO ThinkCentre M70s G5 SFF Desktop PC i5-14400 16GB DDR5 512GB SSD Windows 11 Pro 3yrs Onsite Wty Ethernet RJ-45 LAN UHD Graphics Keyboard Mouse
PERFORMANCE
ProcessorIntel Core i5-14400, 10C (6P + 4E) / 16T, P-core 2.5 / 4.7GHz, E-core 1.8 / 3.5GHz, 20MB
GraphicsIntegrated Intel UHD Graphics 730
ChipsetIntel Q670 Chipset
Memory2x 8GB UDIMM DDR5-4800
Memory SlotsTwo DDR5 UDIMM slots, dual-channel capable
Max MemoryUp to 64GB DDR5
Storage512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
Storage SupportUp to three drives, 1x 3.5' HDD + 1x 2.5' HDD + 1x M.2 SSD 3.5' HDD up to 2TB 2.5' HDD bay is only for customer self upgrade M.2 SSD up to 2TB each
Card ReaderNone
OpticalNone
Audio ChipHigh Definition (HD) Audio, Realtek ALC623-CG codec
Speakers1Wx1
Power Supply260W 90%
DESIGN
KeyboardUSB Traditional Keyboard, Black, English
MouseUSB Calliope Mouse, Black
Optional BayNone
Expansion SlotsOne PCIe 3.0 x16, low-profile, length 155mm, height 70mm
One PCIe 3.0 x1, low-profile, length 155mm, height 70mm
Two M.2 slots (one for WLAN, one for SSD)
Case ColorBlack
StandNone
Dust FilterNone
PenPen Not Supported
Form FactorSFF (8.2L)
Dimensions (WxDxH)92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches)
WeightAround 5.3 kg (11.7 lbs)
CONNECTIVITY
EthernetIntegrated 100/1000M
WLAN + BluetoothIntel Wi-Fi 6 AX201, 802.11ax 2x2 + BT5.2
WWANNon-WWAN
Front Ports1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
4x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x headphone / microphone combo jack (3.5mm)
1x microphone (3.5mm)
Rear Ports4x USB-A (Hi-Speed USB / USB 2.0)
1x HDMI 2.1 TMDS
1x DisplayPort 1.4a (HBR2, DSC)
1x Ethernet (RJ-45)
Optional Rear Ports (configured)None
SECURITY & PRIVACY
Security ChipDiscrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint ReaderNo fingerprint reader
Physical LocksKensington Security Slot, 3 x 7 mm
Padlock Loop
Smart Cable ClipNone
Chassis E-LockNone
Chassis Intrusion SwitchNone
MANAGEABILITY
System ManagementNon-vPro
SERVICE
Base Warranty3-year, Onsite
Included UpgradeNone
CERTIFICATIONS
Green CertificationsENERGY STAR 8.0
EPEAT Gold Registered
ErP Lot 3
GREENGUARD
RoHS compliant
TCO Certified 9.0
Mil-Spec TestMIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)
