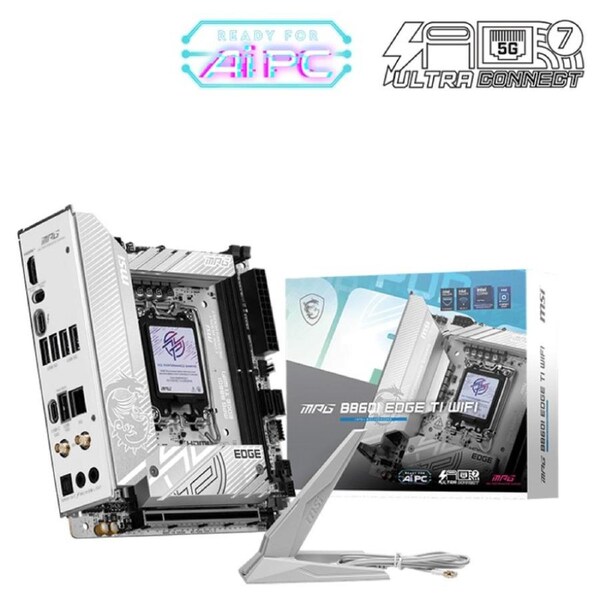

[MPG B860I EDGE TI WIFI] MSI Intel Mini-ITX Motherboard

MPG B860I EDGE TI WIFI | Gaming Motherboards|Best Motherboard for AI PC| - MPG ZB860I EDGE TI WIFI Intel LGA1851 gaming motherboard offers advanced connectivity with Wi-Fi 7, 5G LAN, Thunderbolt, PCIe 5.0, and EZ DIY features. Designed for AI PCs and EZ DIY, this is the best B860 mini-ITX motherboard for Intel Core Ultra CPU.

• Support Intel ® CoreTM Ultra Processors (Series 2) for LGA 1851 socket
• Supports DDR5 Memory, up to 8600+ MT/s (OC)
• Ultra Performance:8+1+1+1 Duet Rail Power System, Core Boost, Memory Boost, 12-layer PCB made by 1oz thickened copper and server-grade level material
• Frozr Guard:Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• EZ DIY:EZ Antenna, EZ Button and EZ Debug LED
• Lightning Fast Game experience:PCIe 5.0 slot, Lightning Gen 5 M.2
• Ultra Connect:ThunderboltTM 4 and Intel ® KillerTM 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost:Reward your ears with studio grade sound quality for the most immersive gaming experience

• Chipset :INTEL B860
• CPU :Supports Intel® CoreTM Ultra Processors (Series 2)
  LGA 1851
• Memory :2x DDR5 UDIMM, Maximum Memory Capacity 128GB
  Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
  Max. overclocking frequency:
  1DPC 1R Max speed up to 8600+ MT/s
  1DPC 2R Max speed up to 7200+ MT/s
  Supports Intel POR Speed and JEDEC Speed
  Supports Memory Overclocking and Intel XMP 3.0
  Supports Dual-Controller Dual-Channel mode
  Supports Non-ECC, Un-buffered memory
  Supports CUDIMM
  The DIMM slots on this motherboard have single-sided latches.
  Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product's Support page or visit Official MSI Website.
• Onboard Graphics :1x HDMITMSupports HDMI
  2.1 with FRL port, maximum resolution of 8K 60Hz*1x Type-C DisplayPortThundebolt
  4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
  *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• Slot :1x PCI-E x16 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• Audio :Realtek
  ALC897 Codec7.1-Channel High Definition Audio
  Supports S/PDIF output
• Storage :2x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
  M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
  2x SATA 6G
• RAID :Supports RAID 0 and RAID 1 for SATA storage devices
• Onboard Thunderbolt :Thunderbolt Resource CPU
  1x Thunderbolt4 ports (Rear)
  Supports up to 40Gbps transfer rate with Thunderbolt devices
  Supports up to 20Gbps transfer rate with USB4 devices
  Supports up to 10Gbps transfer rate with USB 3.2 devices
  Supports up to 5V/3A,15W power charging
  Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
  Supports up to 8K display
• USB :2x USB 2.0 (Front)4x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)1x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear)
  1x USB 10Gbps Type C (Front)
• LAN :1x Intel
  KillerTM E5000B 5G LAN
• Internal IO :1x Power Connector(ATX_PWR)
  1x Power Connector(CPU_PWR)
  1x CPU Fan
  1x Combo Fan (Pump_Sys Fan)
  1x System Fan
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x Addressable V2 RGB LED connector (JARGB_V2)
  1x RGB LED connector(JRGB)
  1x TPM pin header(Support TPM 2.0)
  2x USB 2.0 ports
  2x USB 5Gbps Type A ports
  1x USB 10Gbps Type C ports
• WIRELESS LAN & BLUETOOTH :Intel
  KillerTM BE1750x Wi-Fi 7
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  Supports Bluetooth
  5.4**, MLO, 4KQAM
  * 6GHz band support may depend on every country's regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
• LED FEATURE :4x EZ Debug LED
  1x EZ Memory Detection LED
• BACK PANEL PORTS :Clear CMOS Button
  USB 5Gbps Type-A
  5G LAN
  Wi-Fi / Bluetooth
  Audio Connectors
  HDMITM
  Flash BIOS Button
  Thunderbolt 4
  USB 10Gbps Type-C
  USB 10Gbps Type-A
  Optical S/PDIF Out
• OPERATING SYSTEM :Support for Windows
  11 64-bit
• PCB Info :Mini-ITX
  170mmx170mm
