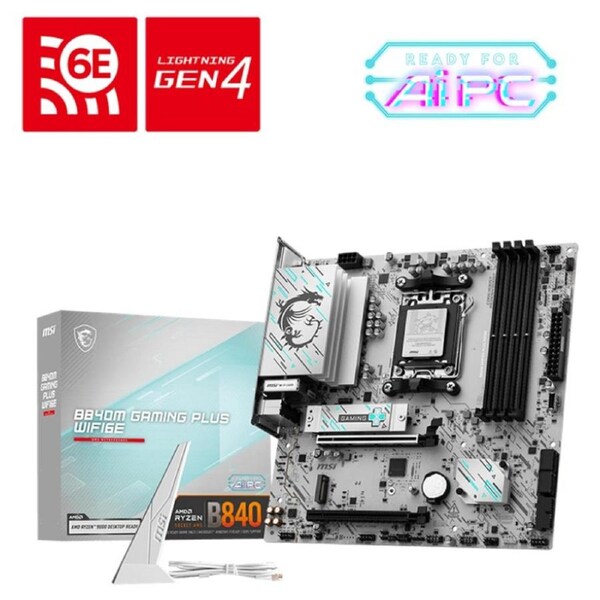

MSI B840M GAMING PLUS WIFI6E AMD Micro-ATX Motherboard

The B840M GAMING PLUS WIFI6E is a gaming oriented mATX motherboard that supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 4.0, 2.5G LAN, Wi-Fi 6E and DDR5 that balances both value and hardware.

• Supports AMD RyzenTM 9000 / 8000 / 7000 Series Desktop Processors
• Ultra Performance:7+2+1 Phase Direct CPU Power, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB with 2oz thickened copper
• Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC)
• Frozr Guard:Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr II are built for high performance system and non-stop experience
• Lightning Fast Game experience:PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C
• High-speed Connectivity:Wi-Fi 6E with 2.5G LAN - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• EZ DIY:EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
• Audio Boost:Reward your ears with studio-grade sound quality for the most immersive gaming experience

• Chipset :AMD B840
• CPU :Supports AMD RyzenTM 9000/ 8000/ 7000 Series Desktop Processors
  Socket AM5
• Memory :4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
  RyzenTM 9000 Series Processors max. overclocking frequency:
  1DPC 1R Max speed up to 8000+ MT/s
  1DPC 2R Max speed up to 6400+ MT/s
  2DPC 1R Max speed up to 6400+ MT/s
  2DPC 2R Max speed up to 5600+ MT/s
  Supports AMD POR Speed and JEDEC Speed
  Supports Memory Overclocking and AMD EXPO
  Supports Dual-Channel mode
  Supports Non-ECC, Un-buffered memory
  Supports CUDIMM, Clock Driver bypass mode only*
  * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
  Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product's Support page or visit Official MSI Website.
• Onboard Graphics :1x HDMITMSupport HDMITM 2.1, maximum resolution of 4K 60Hz*
  *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• Slot :2x PCI-E x16 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
  PCI_E1 slot
  Supports PCIe 4.0 x16 (For RyzenTM 9000/ 7000 Series processors)
  Supports PCIe 4.0 x8 (For RyzenTM 8700/ 8600/ 8400 Series processors)
  Supports PCIe 4.0 x4 (For RyzenTM 8500/ 8300 Series processor)
• Audio :Realtek
  ALC897 Codec7.1-Channel High Definition Audio
• Storage :2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
  *Please refer to the manual for M.2 SSD heatsink restrictions.
• RAID :Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• USB :4x USB 2.0 (Rear)
  4x USB 2.0 (Front)
  2x USB 5Gbps Type A (Rear)
  2x USB 5Gbps Type A (Front)
  1x USB 5Gbps Type C (Front)
  1x USB 10Gbps Type A (Rear)
  1x USB 10Gbps Type C (Rear)
• LAN :Realtek
  8125D 2.5G LAN
• Internal IO :1x Power Connector(ATX_PWR)
  1x Power Connector(CPU_PWR)
  1x CPU Fan
  1x Combo Fan (Pump_Sys Fan)
  3x System Fan
  1x EZ Conn-header (JAF_1)
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x Com Port (JCOM)
  1x Tuning Controller connector(JDASH)
  3x Addressable V2 RGB LED connector (JARGB_V2)
  1x RGB LED connector(JRGB)
  1x TPM pin header(Support TPM 2.0)
  4x USB 2.0 ports
  2x USB 5Gbps Type A ports
  1x USB 5Gbps Type C ports
• WIRELESS LAN & BLUETOOTH :Wi-Fi 6E Solution
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax
  Supports Bluetooth
  5.3, FIPS, FISMA
  * Wi-Fi 6E 6GHz may depend on every country's regulations and will be ready in Windows 11.** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
• LED FEATURE :4x EZ Debug LED
  1x EZ Memory Detection LED
• BACK PANEL PORTS :Clear CMOS Button
  USB 10Gbps Type-A
  USB 2.0
  2.5G LAN
  Wi-Fi / Bluetooth
  Audio connectors
  Flash BIOS Button
  HDMITM
  USB 10Gbps Type-C
  USB 5G
• OPERATING SYSTEM :Support for Windows
  11 64-bit
• PCB Info :mATX
  243.84mmx243.84mm
