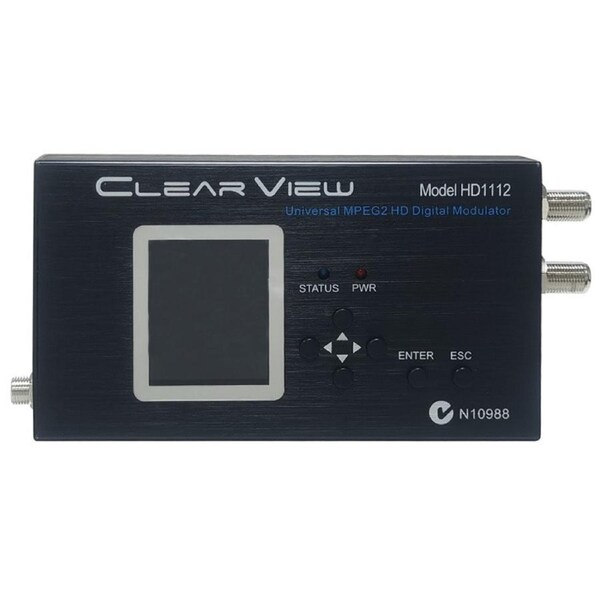

ClearView HD1112U Universal MPEG2 Single HD DVBT Modulator

Multi-System, DVB-C/T/ DTMB/ ISDB-T/ ATSC/ J.83B
Supports output resolutions up to 1080p
Easy to use colour LCD panel and 6 key buttons + Web GUI
Small size and Light weight
Supports wall-mounting
Good ventilation for the device
Install multiple units onto your TV system
Works well on Foxtel Live Sports
Low Latency down to 100 Milleseconds in DVBT mode
Supports Apple TV Source

Specifications

Encoding Section-Video
Encoding MPEG2
Interface HDMI x 1
Input Resolution PAL,NTSC 720@50p, 720@60p
1080@50i/p,1080@60i/p
Output Resolution 1080@60p Maximum
Bit rate 2-25Mbps

Encoding Section-Audio
Encoding MPEG-1 Layer2, AAC, AC3
Sample rate 48KHz

System
Management LCD + Control buttons + Web GUI Login
Language English
Upgrade USB Menu Configuration
Basic RF range/Service Name/RF attenuation/ LCN
Advanced Service provider/Network ID/ONID/TS ID/Service ID
PMT PID/VPID/APID/PCR PID/Network

Modulator Section
MER Typ. 35dB
RF range 50-950MHz, 1KHz stepd RF output level
Level 100dBuv (70-100 ADJ) Standard
System DVB-C/T/ DTMB/ ISDB-T/ ATSC/ J.83B

DVB-C
Constellation 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Symbol rate 5.000-8.000Msps ADJ
DVB-T
Bandwidth 6M, 7M, 8M
Constellation QPSK, 16QAM, 64QAM
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
Guard interval 1/4, 1/8, 1/16, 1/32
FFT 2K, 8K
ISDB-T
Bandwidth 6M
Constellation QPSK, 16QAM, 64QAM
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
Guard interval 1/4, 1/8, 1/16, 1/32
FFT 2K, 4K, 8K
DTMB
Constellation GB20600-2006
ATSC
Constellation 8VSB
QAM J.83B 64QAM, 256QAM

General
Power supply 12V1A
Dimensions 128 x 77 x 28mm
Weight 350g
