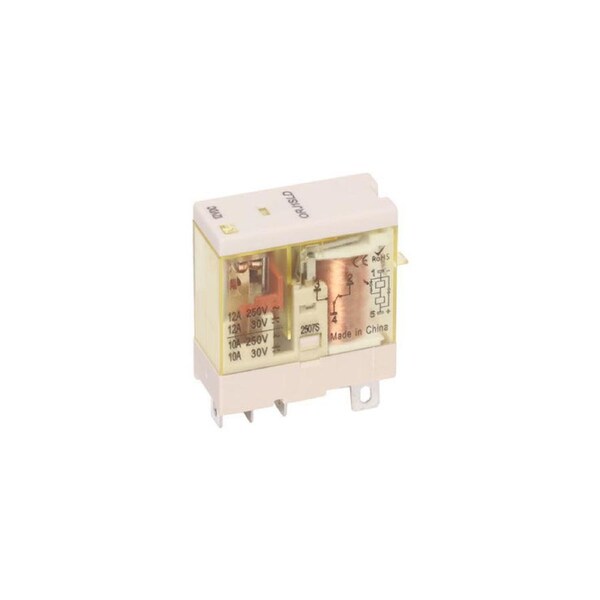

SA4190 12A 12VDC SPST Cradle Relay Plug-in Installation PBT Base SIlver Alloy
This 12A 12VDC SPST Cradle Relay acts like a simple on-off switch for a single electrical circuit. The cradle provides a secure mounting point and connection terminals for the relay, making it useful in applications like automotive electrical systems.
- Resistive Load: 12A/250V AC, 30V DC
- Resistive switching power: 3000VA, 360W
- Electrical Life: ?100,000 cycles
- Initial contact resistance: ?50m?
- Insulation resistance: ?100m? (500V DC)
- Coil power: DC: About 0.53W. AC: About 0.9VA
- Contact release time: AC: ?20ms. DC: ?10ms. Diode: ?20ms
- Operating temperature: -40°C to 70°C
- Impact resistance: Stability 98m/S². Strength 980m/S²
- Installation: Plug-in Installation
- Weight: ~20g
Power frequency withstand voltage:
- Between contacts of the same pole: 1,500V AC, 1min
- Between contacts of the opposite pole: 3,000V AC, 1min
- Between contact and coil: 3,000V AC, 1min
Materials:
- Contact: SIlver Alloy
- Body: PC
- Base: PBT
