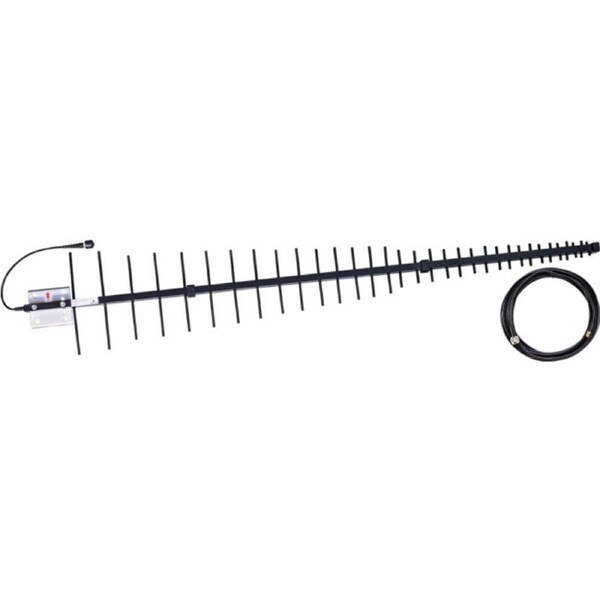

BLACKHAWK 698-4000Mhz 12/14Dbi- 5G Ready 10M Lmr240 Sma-M To N-M Lead
ANT-BH-YG-LOG-LPDA-10 - BLACKHAWK LPDA ANTENNA - 698-4000MHZ 12/14DBI
Includes a 10M LMR240 SMA-M to N-M LEAD
5G Ready
Operating on all 3G, 4G and 5G frequencies in Australia, this high-grade antenna can be used in a range of residential, commercial, and industrial mobile broadband applications on any mobile network.
This is the ideal external antenna for Cel-Fi repeater systems.
The Blackhawk LPDA Antenna provides an ideal solution for3G/ 4G voice and data applications.
With the rollout of new 3G, 4G and even 5G frequencies, traditional Yagi antennas just haven't been able to keep up.
LPDA antennas allow a single antenna to cover all frequencies with the high gain of a Yagi antenna that rural and remote areas demand.
This one antenna can be used on any mobile phone network in Australia, in any area without worrying about compatibility.
A Log Periodic Dipole Antenna, or LPDA for short, is a clever antenna design that provides exceptional wide-band performance by phasing a series of elements together, much like an ordinary Yagi but with each successive element of a smaller (or larger) length.
The result of this clever engineering is an antenna that holds high gain, with good tuning, across the entire cellular frequency range.
FEATURES
- 12 dBi gain across lower bands 698-960 MHz
- 14 dBi gain across bands 1710-2700 MHz
- 12 dBi gain across upper bands 3300-4000 MHz
- Ruggedised construction for Australian conditions
- Fully welded, powder coat aluminium design
- Stainless steel mounting clamp included
- 30 cm tail with pre-terminated N Female connector
- Ideal for high-speed 3G and 4G LTE applications.
- Ideal for Telstra Next-G and 4GX networks, Optus, and Vodafone 3G/4G & 5G
ELECTRICAL SPECIFICATION
| Frequency Range (MHz) | 698-960 / 1710-2700/ 3300-4000 |
| Input Impedance | 50 Ohm |
| Peak Gain | 12 / 14 dBi |
| VSWR | 2.5:1 /1.8:1 |
| Polarisation | Vertical, linear |
| Horizontal Beam-width | 55 / 42o |
| Vertical Beam-width | 46 / 34o |
| Maximum Input Power | 50 W |
| Input Connector | N Female |
| Cable | 30 cm cable tail |
| Lightning Protection | DC Ground |
| Radiator Material | Fully welded aluminium, black powder coat |
| Mounting | Stainless Steel, pole mountO30-50 mm |
| Dimensions | 1240 x 200 x 60 mm |
| Packing Dimensions | 1290 x 210 x 90 mm |
| Weight | 2.2 kg |
| Rated Wind Velocity | 192 km/h |
| Operating Temperature | -40 to +65oC |
