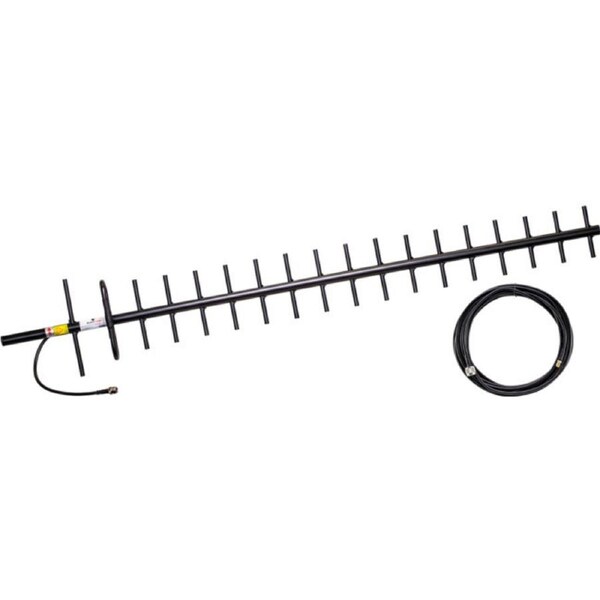

BLACKHAWK Yagi 698-890Mhz Antenna 14Dbi Gain Blackhawk

This fully welded 14 element antenna has been designed for ruggedised locations and includes a Mounting Bracket

Providing a 15dBi gain for 690-890 MHz this premium grade cellular antenna will satisfy 3G and 4G capabilities for all the major networks in Australia.

The Blackhawk Yagi antennas provide the perfect solution for voice and data applications where high gain antennas arerequired.

Perfect for fixed wireless terminals, mobile broadband internet and smart repeater applications.

Fully welded construction suited to extreme climate applications.

Features:

• Ruggedised fully welded construction for extreme conditions

• Powder coated finish

• Mounting clamp included

• 30cm pig tail terminated N Female

• Includes 10m LMR 240 Lead

• Perfect solution for voice and data applications where high gain antennas are required

• Ideal for fixed wireless terminals, mobile broadband Internet and smart repeater applications


ELECTRICAL SPECIFICATIONS

• Frequency Range 690-890 MHz

• Impedance 50V

• VSWR <1.5:1

• Gain 15dBi

• Front to Back Ratio >25 dB

• Max Input Power l00W

• Polarization Vert/Horz H 27

• Half-power beam width E 26o

MECHANICAL SPECIFICATIONS

• Dimensions '1360x185"75(mm}

• Weight 1.05kg

• Rated Wind Velocity 216km/hr

• Operating Temperature 50oC +7011C

• Connector N Female

• Material Aluminium

• Antenna Colour Black

• Diameter of installing pole 30-50mm

Ship out the order within 24-48 hours.
