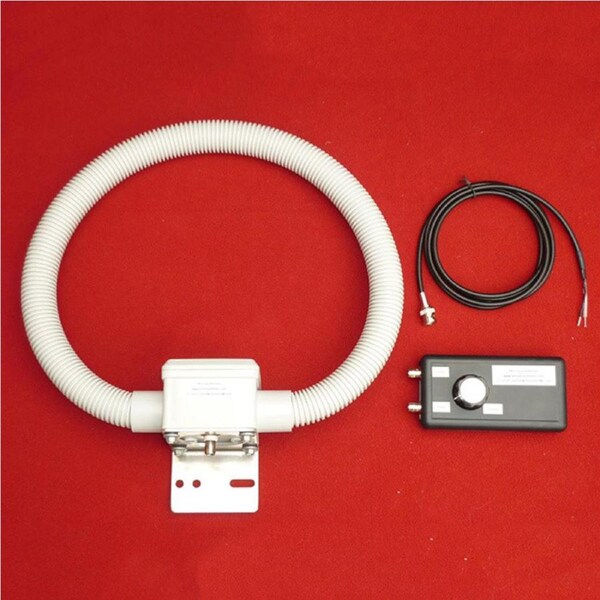

PK'S LOOP ANTENNA Hd Series Remote Tuned Loop Fringe Antenna -Incl 10M Cable
PK Loop Antennas are proudly designed and manufactured inAustralia
An outdoor AM Loop antenna with remote tuning for buildings constructed with steel roofs and frames ( like sheds or caravans) or those with re-inforced concrete.
The Loop mounts outdoors and a single co axial cable connects it to the tuning control box.
There is an output for a wired connection to your AM radio / receivers external antenna and ground terminals
The tuning system is sharp and peaks right on station, boosting weak signals whilst rejecting interference and enhancing reception quality.
Supplied Accessories
- 1 x Loop antenna,control box with inbuilt 9V battery holder and instructions
- 1 x Loop cable, a 10m Coax cable pre-fitted with "F" connectors
- 1 x 1m - F- connect to open ends cable for radio / receiver antenna - ground terminals
- 1 x L-mount bracket with screws to fit it to the loop base
Specifications:
|
AM Band | 525 to 1725KHz |
|
IP56 rated PVC | Paintable |
|
40cm - 16" Dia | |
|
9v Alkaline battery | ( NOT SUPPLIED ) |
Set Up
- Connect the coax cable between the Loop antenna and the control box connecter marked "LOOP"
- Connect your Radio / Receiver to the connector marked "Radio" on the control box
- Insert a fresh 9v Alkaline battery ( Not supplied ) into the control box
- Tune your Radio to the desired Stations' frequency
- Slowly turn the manual tune control to the point of strongest reception
- Orientate the Loop Antenna to obtain the clearest reception; Edge on towards the transmitter is best.
