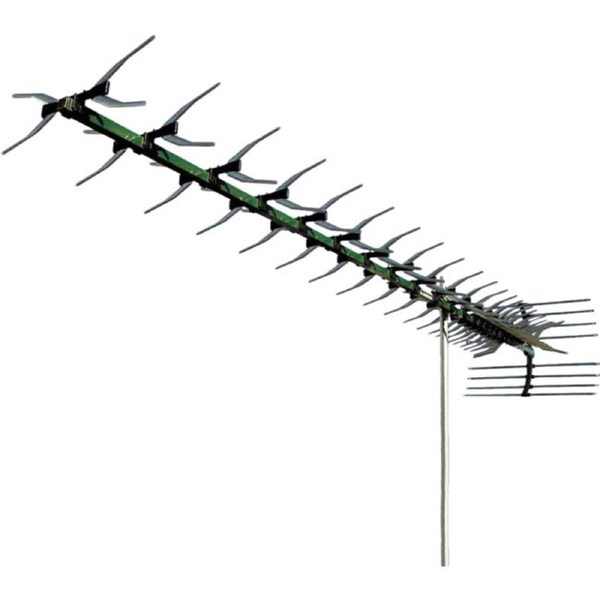

MATCHMASTER 91 Element Uhf Antenna Ch28-51 Matchmaster
Matchmaster premium VHF/UHF & Combination antennas, suitable for metropolitan & rural areas using VHF, UHF or combination broadcasts. Heavy duty construction with ?F? type baluns to improve signal quality. Various models can beused in horizontal or vertical broadcast areas. Matchmaster antennas feature built in Low Pass Filters either at 230MHz,652MHz or 694MHz depending on model to prevent 4G (LTE) interference.
Features and Benefits
- 694MHz low pass 4G LTE filter > 30dB at 750 MHz
- 91 element X type element
- Australian Made
- 16dB Maximum gain
- Receives UHF Channels 28-51
Specifications
| Elements | 91 | |
|---|---|---|
| Band | UHF | |
| Channels | (28-51) | |
| Frequency Range | 520-694MHz | |
| Maximum Gain | 16dB | |
| Front/Back Ratio | >26dB | |
| Half Power Beam Width Horizontal | 30o | |
| Half Power Beam Width Vertical | 33.3o | |
| Wind Loading Horizontal | 109N | |
| Boom Length | 2238mm (Split Boom) | |
| Balun Type | 'F' Type PCB | |
| Packing Type/Unit | Inner Outer |
1 5 |
