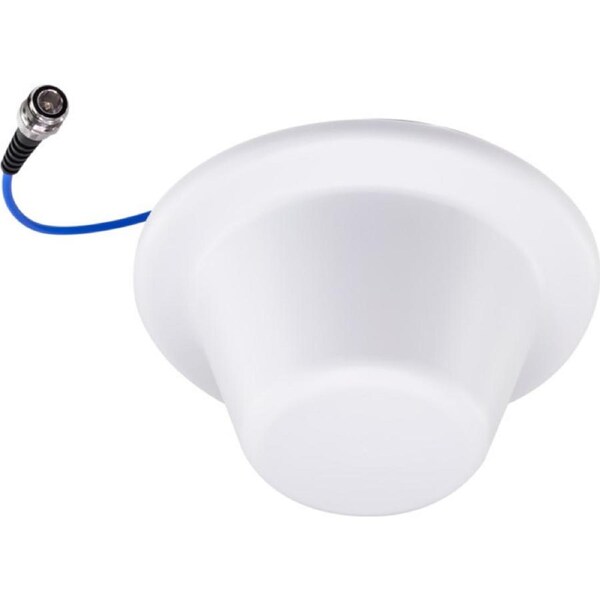

BLACKHAWK Indoor Dome Ceiling Antenna Blackhawk
ANT-BH-OM-C - BLACKHAWK INDOOR DOME CEILING ANTENNA
FEATURES
- 2.5 dBi gain across lower bands 698-960 MHz
- 3.5 dBi gain across upper bands 1710-2700 MHz
- ABS plastic and aluminium construction
- Threaded bulkhead mount for ceiling installation
- Short cable tail with N female connector
- Ideal for Cel-Fi GO repeater applications for marine and caravan
Ideal for Telstra Next-G and 4GX networks, Optus, and Vodafone 3G/4G.
Operating on all 3G and 4G frequencies in Australia and abroad, this high grade antenna can be used in a range of residential, commercial, and industrial mobile broadband applications on any mobile network.
This is the ideal indoor antenna for Cel-Fi repeater systems.
Indoor dome antennas are designed to be mounted to the ceiling of your building to provide consistently distributedmobile phone service from your Cel-Fi repeater/booster.
The antenna is compact with a visually unobtrusive designsimilar to a smoke alarm.
The Blackhawk Omni Ceiling Antenna will provide the perfect solution for voice and data applications.
Perfect for repeater applications that require a 360o beamwidth for complete internal coverage.
Main Technical Specifications:
|
ANT-BH-OM-C |
|
698-960 MHz / 1710-2700 MH |
|
2.0:1 /1.8:1 |
|
50Ohm |
|
2.5 / 3.5 dBi |
|
Vertical Linear |
|
360o (omnidirectional) |
|
90 / 55o |
|
23dB |
|
50W |
|
DC ground |
|
N Female |
|
Short tail cable |
|
0.25kg |
|
210mmx180mmx44mm |
|
ABS plastic - White |
|
Brass and aluminium |
|
-40oC~+65oC |
