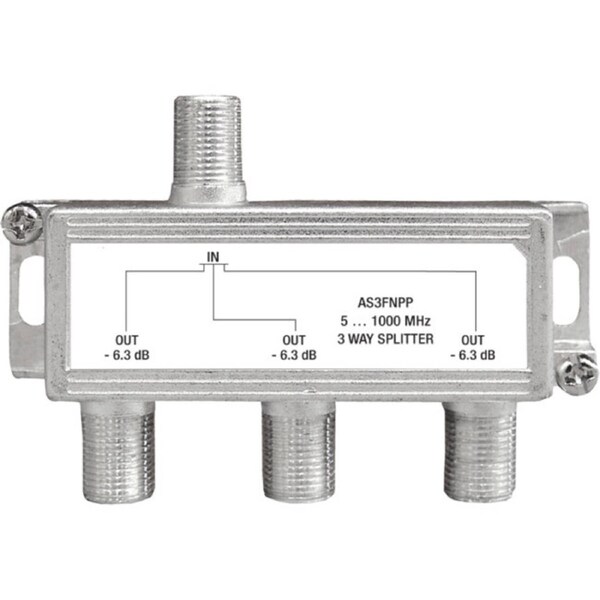

PCT 3 Way F-Type Splitter Foxtel Approved F30224

AS3FG2 3 WAY F TYPE SPLITTER 5 - 1000MHz FOXTEL APPROVEDF30224

Features:

• Superior intermodulation distortion and second harmonic performance
• Excellent return loss and port-to-port isolation in the return band
• Patented DSM seizure technology provides increased spring retention for better surface contact (patent#6450836)
• Gold-plated, beryllium copper construction for better corrosion resistance, impedance matching, and prevention of common path distortion
• 6 kV surge withstand, guaranteed second orderharmonics performance after 5 surges to each port of 6 kV (per IEEE.C62.41.1991 Category A3)
• Tin-plated back plate provides minimum -110 dB shielding effectiveness and superior defence against long-term corrosion factors
• -60 dBmV spurious signals and 2nd harmonics with a +55 dBmV input carrier
• Weather-sealed "F" ports
• Machine threaded, flat "F" ports

Specs:

• Nominal Impedance 75 Ohms
• Flatness (Tap & Out) 0.5 dB
• RFI -110 dB
• Spurious Signals Including 2nd Harmonics -60 dBmV measured with a +55 dBmV return input carrier
• (-45 dBmV, after 5 surges of 6 kV on each port measured with a +55 dBmV return input carrier)
• Blocking Capacitors All ports
• Surge Withstand IEEE C62.41-1991 Category A3 (6000 V, 200 Amp, 0.5 s-100 kHz Ring Wave)
• Operating Temperature -40 to +60 C (-40 to+140 F)

Ship out the order within 24-48 hours.

Change of mind:
Customer can return the item if purchased by mistake within 14 days of the customer’s order being received.

Change of mind returns will only be eligible for a refund on the product’s sale price within receiving the item'. Return postage is paid by the customer.

Warranty

Without prejudice and to the extent allowed by the Trade Practices Act 1974, The Australian Consumer Law and Competition and Consumer Act 2010, all hardware sold by MAD Electronics Australia is covered by one year limited warranty and is also backed by Australian manufacturer warranty. Where the manufacturer warranty period exceeds one year, we will advise the customer to contact the manufacturer directly for warranty support after the first year of purchase. Due to the nature of consumables products and software, they are not returnable or refundable items.

Any defective products purchased from MAD Electronics Australia and affiliates that fall within the warranty period provided will be covered, unless they fall within the following conditions:

· Physical Damage on the product not caused in the event during transit or Dead on Arrival (DOA) but caused due to mishandling, incorrect use of product for its purposes, improper installation of product, by accident, insect or vermin infestation, improper method or failure to maintain service and handle the item with reasonable care.

· The product has been modified using unauthorised methods. Any modifications on the product including physical and software modifications using third party unauthorised software such as third party firmware updates will void the warranty of products.
· The warranty seal or serial number of the item has been tampered with.
· The item has been serviced by another party other than madelectronics
· Consequential loss including but not limited to data, programs, software or other information stored on storage products, computer or laptop systems.
· Software

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
