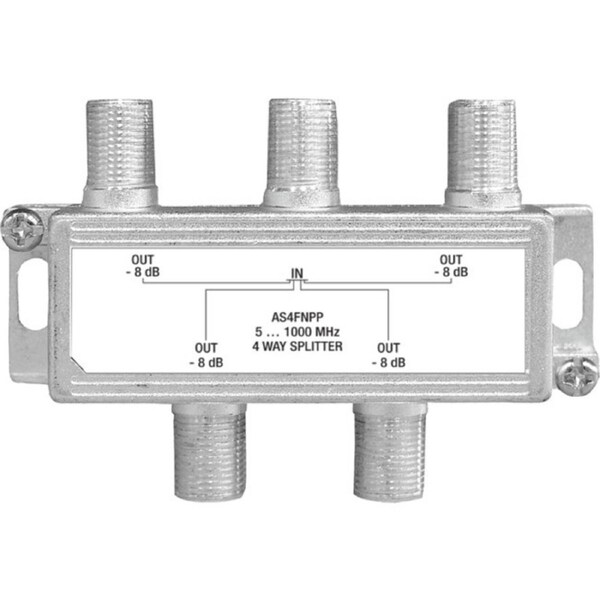

PCT 4 Way F-Type Splitter Foxtel Approved F30225

AS4FG2 4 WAY F TYPE SPLITTER 5 - 1000MHz FOXTEL APPROVEDF30225

Features:

• Superior intermodulation distortion and second harmonic performance
• Excellent return loss and port-to-port isolation in the return band
• Patented DSM seizure technology provides increased spring retention for better surface contact (patent#6450836)
• Gold-plated, beryllium copper construction for better corrosion resistance, impedance matching, and prevention of common path distortion
• 6 kV surge withstand, guaranteed second orderharmonics performance after 5 surges to each port of 6 kV (per IEEE.C62.41.1991 Category A3)
• Tin-plated back plate provides minimum -110 dB shielding effectiveness and superior defence against long-term corrosion factors
• -60 dBmV spurious signals and 2nd harmonics with a +55 dBmV input carrier
• Weather-sealed "F" ports
• Machine threaded, flat "F" ports

Specs:

• Nominal Impedance 75 Ohms
• Flatness (Tap & Out) 0.5 dB
• RFI -110 dB
• Spurious Signals Including 2nd Harmonics -60 dBmV measured with a +55 dBmV return input carrier
• (-45 dBmV, after 5 surges of 6 kV on eachport measured with a +55 dBmV return input carrier)
• Blocking Capacitors All ports
• Surge Withstand IEEE C62.41-1991 CategoryA3 (6000 V, 200 Amp, 0.5 s-100 kHz Ring Wave)
• Operating Temperature -40 to +60 C (-40 to +140 F)

Ship out the order within 24-48 hours.
