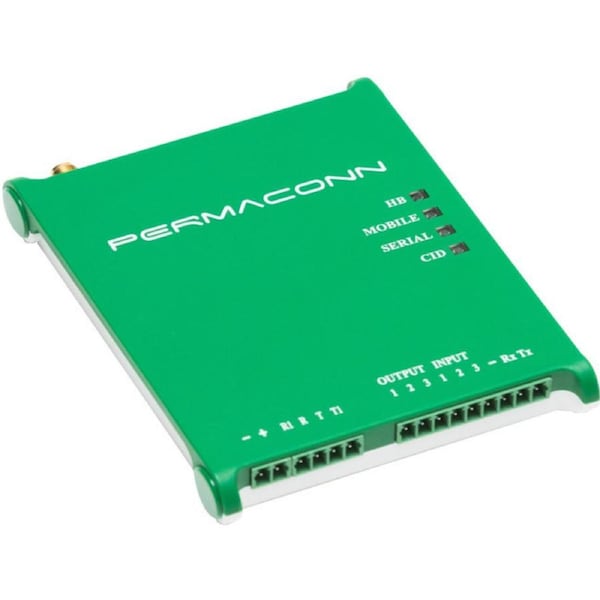

PERMACONN Pm24-4G Single Sim 4G Gsm Dialler No Battery Back Up
Overview
106-394 PM24-4G SINGLE SIM 4G GSM DIALLER - PERMACONN
Single SIM 4G
The smallest and most cost-effective single SIM Communicator in Australia.
This Communicator is compatible with any Contact ID enabled alarm panel.
The PM24 incorporates the latest technology available today - and signals are transmitted over the CAT M1 IoT network, that forms part of the 4GX network.
- Innovative: Uses the latest Cat M1 network designed for machine-to-machine comms
- Higher Performance: Longer range and 20% greater penetration into buildings
- Lower Power Consumption: Easily powered by the alarm panel
- No Drilling or Screws: Attaches magnetically to the alarm panel enclosure
- Smartphone Control: Works with Pocket Secure and Atlas
Features
- Small size: Fits inside alarm panel enclosure and suitable for ATM & M2M applications
- Secure VPN within Telstra network: Dedicated for Permaconn events only
- AES128 encryption for alarm data: Secure alarm signalling
- Various diagnostic LEDs: Easy installation
- Activate, control and diagnose PM24 using Atlas portal: Seamless installation process
- Internal watchdog reset function: No unnecessary service call-outs
- Monitors & reports dialler interface lead status:secure interface from alarm panel dialler to Permaconn
- Outputs can be configured to arm/disarm the alarm system, control gates and lights. 'Pocket Secure' smartphone app controls these functions
Specifications
Specifications
| Housing Material | ABS Plastic - Greeg |
|---|---|
| Dimensions (HxDxW) | 108mm x 15.5mm x 80mm |
| Weight | 80g |
| LTE FDD | B3 / B28 |
| Power | 8-15V DC Terminal Supply |
| Power Consumption |
|
| Modem | Quectel BG96 |
| Auxiliary Input | 3 x 24hr inputs - state change Detected every second EOL 3.3K |
| Auxiliary Output | 3 x Open Collector outputs @ 50mA (max) |
| Function | Control using Atlas web portal and/or "Pocket Secure" App |
| Data Security | AES128 Encryption |
| Approvals |
|
