FORGE Control Relay Dpdt 3Pk

Overview

CR2/3 CONTROL RELAY DPDT 3PK - FORGE

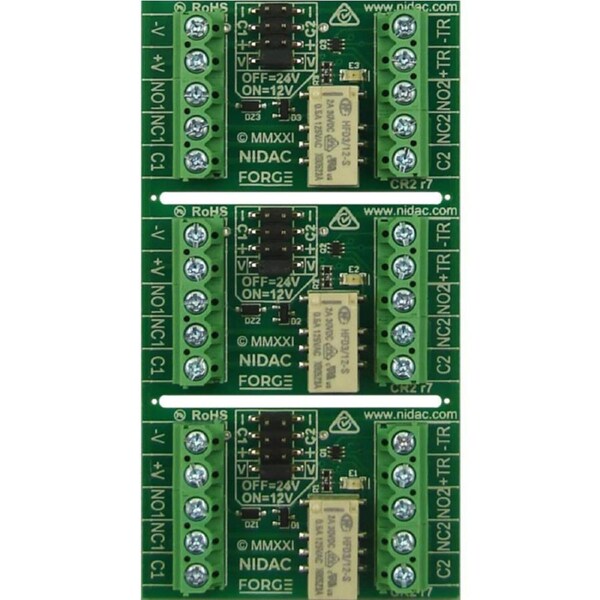

The CR2 Control Relay is a 2 pole, double throw device available as strip of 3 with common supply rails. The CR2 offers flexibility of use and is a suitable device for multiple applications including industrial uses.

Features:

• Expected lifetime of 100,000 operations at full load

• LED indication of operation

• Easy mounting with double sided adhesive tape included as standard

• 2 Amp. rated relay, low 1.2 mA input current

• In-built -TR pull-up resistor and +TR pulldown resistors

• 2 Pole change over contacts, can jumpper +V or -V to common contacts, C1 & C2
• 12 or 24 Volt D.C. operation


Spesc:

• 12 or 24 Volt D.C. operation (10 - 18V V Link ON),

• Maximum Switch Current: 2A at 30V

• +TR Trigger: 2 to +V, 1.2mA @ 12V, 2.4ma @ 24V

• -TR Trigger: 0 to (+V-2V) -1.2mA @ 12V, -2.4ma @

• 24V * all voltages D.C.

• Single unit: 50mm x 31mm x 15mm

• Strip of 3: 50mm x 93mm x 15mm
