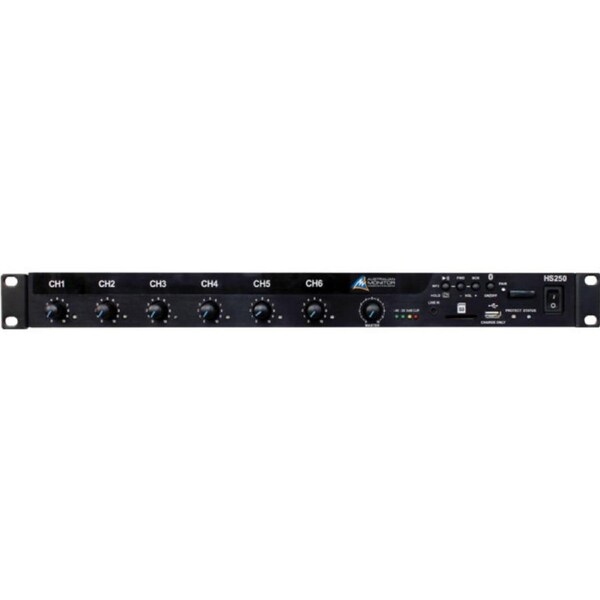

AUSTRALIAN MONITOR 1Ru 250W Class D Mixer Amp Re-Nameable Blutooth -Tones-Usb

Australian Monitor - HS250v2 250W Mixer Amplifier MP3/WAV Player, Bluetooth(R), Tone Generator.

The HSv2 series is Australian Monitor's next generation of Class D mixer amplifiers, delivering high quality audio reinforcement with the power you need - 60, 120 and 250 watt options, all in a one rack unit package.

The HSv2 now includes an upgraded and programmable Bluetooth v5.1 module allowing customisation of the broadcast name, PIN number and various security features. The mixer amplifier includes 7 external and 2 internal audio input channels, each channel offering individual channel volume control, equalizer and gain control. An inbuilt user customizable tone generator, MP3 player, Bluetooth(R) module, 3.5mm jack and USB charger are included as standard.

The HSv2 series has been designed with all of the features and power to suit a vast range of installations, from the boardroom to the classroom, school hall to bar, restaurant or function space.

Key Features

• 250W Class D amplifier stage
• 4 Ohm / 70V and 100V outputs
• Programmable Bluetooth name, PIN and security features via Bluetooth PC Control Software
• 9 audio input channels. 6 rear & 3.5mm Jack, Bluetooth(R) 5.1 and MP3
• Individual gain/equalisation control on all external audio inputs
• Priority mute control on channels 1-3, with level and time release control
• Magnetic cover for customer concealed eq and gain controls
• Embedded tone generator for bell/alert/evac/chime/ intruder plus 11 fully customisable user tones
• Embedded MP3 player via onboard SD card socket supporting random, sequenced and single playback
• Tamper-proof channel attenuation by disabling external volume controls

9 INPUT CHANNELS

The HS series has all the connectivity options required for a multitude of input sources.

• 6 MIC or Line level rear inputs with XLR, Euroblock and RCA connector types
• 3.5mm front panel input
• Bluetooth(R)audio receiver
• MP3/WAV Player

Feature-Image

BLUETOOTH CONTROL SOFTWARE

The WPBT can be optionally programmed via the free Bluetooth PC Control Software. The following settings can be modified,

• Bluetooth broadcast name
• Bluetooth PIN
• Security feature
• Allow phone call support
• Audio output mode


CLASS-DAMPLIFIER

The HS mixer amplifiers use an efficient Class-D amplifier topology allowing a greater power density with a much lower weight.
All amplifier channels offer 100V, 70V and 4Ohm output options so you can choose the output configuration to match your application.

PRIORITY MUTING CONTROL

Priority muting allows the amplifier to duck/mute specific input channels when either talkover/messages or tones are triggered.
The priority muting has four modes.

• Channel 1 Only
• Ch1 then Ch2 then Ch3
• Ch1 and Ch2 then Ch3
• Off

The first 3 input channel levels can be individually set to trigger the muting function as well as a global setting for how long to apply the mute.
In addition, tones from the SD card can be configured to trigger the priority muting when a tone is played.

EMBEDDED TONE GENERATOR

The HS series embeds a customisable tone generator which can play 5 internal tones as well as an additional 11 custom tones from an SD card.
The internal tones can also be overwritten by placing alternative files on the SD card.
Finally, the tone generator also offers the ability to play files at specific volumes as well as trigger the priority scheme for channel muting during playback.
All tones are triggered using the rear LOGIC input connector.

EMBEDDED MP3/WAV PLAYER

The HS series includes an integrated MP3/WAV player.
Audio files can be placed from an SD card (not included) and played using the front panel controls.
Files can be played in sequential or random order depending on which audio folder is selected. Simply hold down the Play/Pause button to swap between folders to change the play mode.

MAGNETIC CONCEALMENT COVER

A magnetic cover conceals tone control, gain and volume defeat options to ensure end users do not tamper with the desired audio setup.
