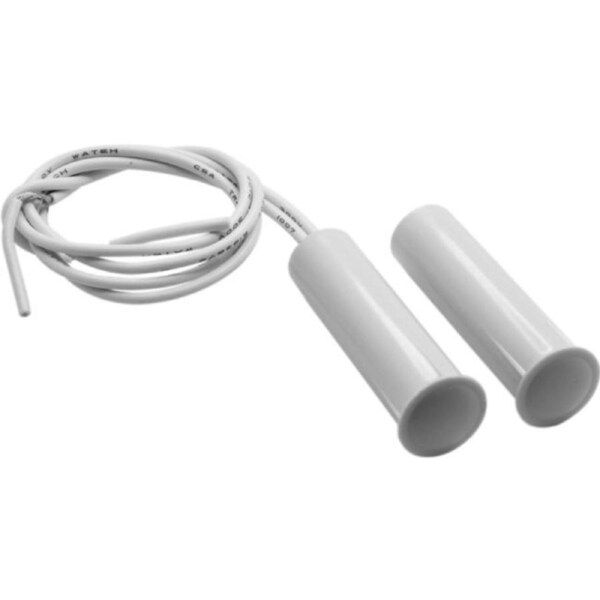

Flush Mount Reed Switch Recessed Magnetic Contact No

Structure

1.Plastic Case: ABS Resin PA-707
2.Reed Switch: FLEX-14
3.Plastic Molding: Epoxy Resin 9001 A/B
4.Wire: AWG#24 1007 VW-1
5.Plastic Case: Plastic Case
6.Magnet: NdFeB N-35 Rare earth
7.Permeable rod: Ferrite
8.Plastic Molding: Epoxy Resin 9001 A/B

Specification

Switch

• Loop type: closed-loop
• Reed Switch Contact Form: FORM A (N.O)
• Switching voltage (max.): 100v AC/DC
• Switching current (max.): 0.5A
• Contact capacity (max.): 10 VA
• Initial contact resistance: 0.2 Ohm max.
• Carry current (max.): 1 A
• Breakdown voltage: 200 VDC
• Insulation resistance: 100 Mohm min.
• Switch cycle: 5x 107 cycle at 30.V 0.1ADC

Magnet

• Material: NdFeB rare earth
• Residual flux density (BR): 11.8~12.5K Gauss
• Maximum energy product (BH): 33~36 MG. Oe
• Curie temp. (TC): 310oC

Gap

• Sense gap: 16mm min.

Physical characteristic

• Temperature: -20oC ~ +60oC
• Vibration: 20G (10~55Hz)
• Shock: 30G (11 msec)
• Heat shock: -25oC~+65oC (30min) (30min) 100 cycle
• Package drop: Drop height 80 cm
• Humidity: 80oC 95% RH 72 hrs

Dimension in MM:
