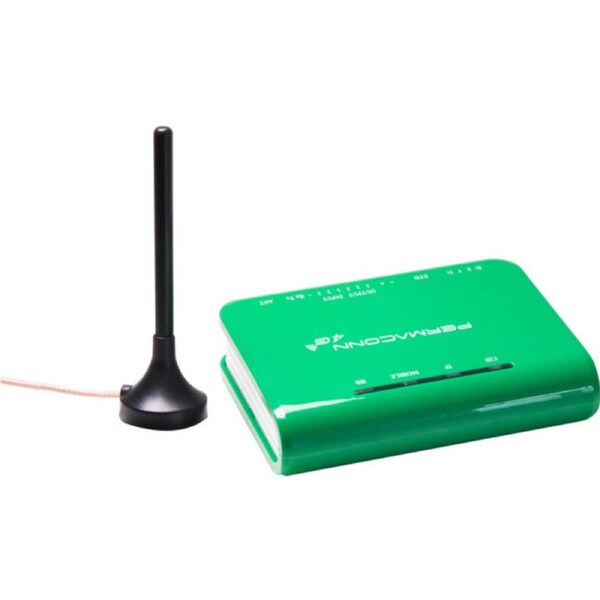

PERMACONN Pm45-4G 4G Dual Sim + Ip Dialler No Battery Back Up
Overview
106-396B PM45-4G 4G GPRS & IP DIALLER - PERMACONN
The Permaconn solution provides a constant securelink between the supervised premises and the Central Station.
The PM45-4G is a versatile alarm communicator that reports on 4G, GPRS and IP to the Central Station.
This unit can interface with a range of alarm panels using Contact ID. Primary alarm path is IP, followed by 4G/GPRS in the event of a wired ethernet failure. If no IP connection exists the communicators will report on GPRS or 4G/3G only.
Features
- Remote alarm panel Upload/Download available using GPRS/3G/IP
- Dual SIM + IP alarm communicator,
- Plug & Play solution,
- Interfaces with any Contact ID alarm panel,
- 1 input + 1 output, function control using Atlas and/or Pocket Secure,
- Low cost hardware solution for NBN or Naked DSL services,
- PM45-4G communicates on 4G & GPRS networks
- Small size - Fits inside alarm panel enclosure and suitable for ATM & M2M applications
- Secure VPN within Optus & Telstra networks - Dedicated for Permaconn events only
- AES128 encryption for alarm data - Secure transmissions over the public internet
- High speed RS232 Interface - Future development
- PM45-3G acquires an IP address automatically using thecustomers DHCP service. No IT headache
- Various diagnostic LEDs - Easy installation
- Activate, commission and diagnose using Atlas - Seamless installation process
- Three (3) dedicated paths of communication - Uptime inexcess of 99.9%
- Internal watchdog reset function - No unnecessary service call-outs
- Monitors & reports dialler interface lead status -Panel dialler to Permaconn interface secure
- AS/NZ2201.5:2008 compliance
- Outputs can be configured to arm/disarm alarm system, control gates and lights. ?Pocket Secure? smartphone app controls these functions.
Specifications
Housing Material |
ABS Plastic - white |
Dimensions |
110mm (h) x 25mm (d) x 80mm (w) |
Weight |
0.12Kg |
Operating Environment |
0o- 50oC @15% to 85% humidity (non-condensing) |
Antenna |
Triple band 3G & Triple band 3G |
Modem |
Quectel EC21 |
Power |
8 - 15V DC Terminal (must be powered from approved supply) |
Power Consumption |
Standby:0.08A @13.8V DC Transmitting:0.19A @13.8V DC |
Communication Protocol |
Ethernet (10/100BASE-T) |
IP Address Allocation |
DHCP or Static IP |
Serial Port |
High Speed RS232 interface |
Auxiliary Input |
3 x 24Hr input - state change detected every second. EOL 3.3K |
Auxiliary Output |
3 x Open Collector output @ 50mA (max) Function control using Atlas web portal and/or Pocket Secure |
Static IP Network Configuration |
Ethernet interface using 'IpSetup' program Atlas web portal using GPRS/3G connection |
Data Security |
AES Encryption |
Supported Modulation |
BELL-103, ITU-V21/V22/V22B |
Approvals |
EN 55022:2006/A1:2007, AS/CA S042.1-2011, AS/CA S042.4-2011 AS/NZS60950.1-2011 , AES2201.5:2008, EN62311:2008, EN301489-1 EN301 489-24, EN301 908-1, EN60950-1 |
