AUDAC 4X 240W - 100V Quad Power Amp Audac

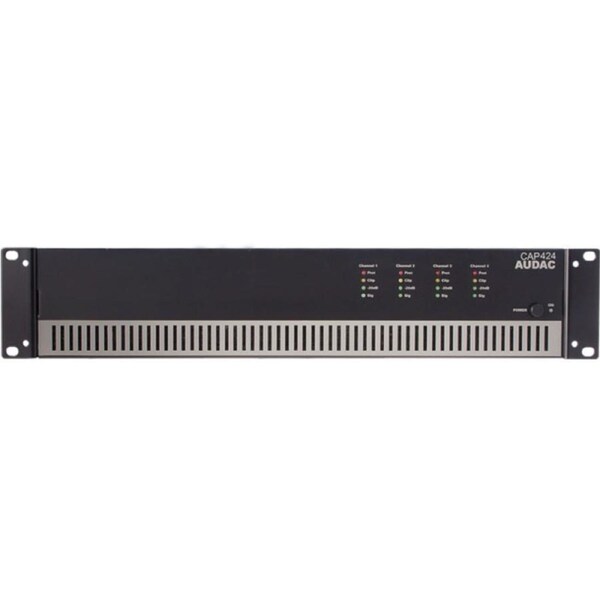

Audac CAP424 QUAD-CHANNEL POWER AMPLIFIER 4 X 240W - 100V
The CAP Series are professional 100V multi-channel power amplifiers, containing various models with different channels and different output power configuration.
The CAP424 is a four channel version with an output power240 Watt per channel.
This way, a flexible solution is created for multi-zone audio distribution systems with four zones.
They are designed as no-nonsense amplifiers with only thenecessary controls and connections which creates great simplicity in use and installation.
A high efficiency and reliability of the devices is achieved by using switching power supplies in combination with Class-D amplifier technology.
A temperature controlled FAN constantly keeps all parts within the right operation range, while avoiding excessive buzz.
A built-in multipurpose protection circuit protects against DC malfunction, Short circuit, overheating, overloadand limits the signal when necessary.
The input connections are performed using balanced XLR connectors and Link output connectors are provided for link through to other amplifiers.
Besides, a high-pass filter switch (400 Hz) and a gain adjustment potentiometer are provided for each channel.
The output connections are performed using reliable terminal block connectors and this all is housed into a solid constructed, double rack space (2 HE) 19" rack mounting housing.
Key Features
- Operation indicator LED's
- Class D amplifier technology
- Advanced protection circuitry
- Terminal block output connections (100V)
- XLR input & linktrough connections
- Input gain control potentiometer
- High pass filter switch
| SYSTEM SPECIFICATIONS | ||
|---|---|---|
| RMS Power | 4 x 240 W | |
| Signal / Noise | > 100 dB | |
| THD+N (@ 1 kHz) | < 0.3% (1/2 Rated Power) | |
| Crosstalk (@ 1 kHz) | < 80 dB | |
| Technology | Class-D | |
| Common mode rejection ratio | 70 dB | |
| Protection | DC Short circuit | |
| Over heating | ||
| Over load | ||
| Signal limiting | ||
| Cooling | Temperature controlled FAN | |
| Operating temperature | 0o ~ 40o @ 95% Humidity | |
| Frequency | Response ( 3 dB) | 50 Hz - 22 kHz |
| Power | Supply | Switching mode |
| Source | 230 ~ 240 V AC / 50 Hz | |
| Inputs | Sensitivity (1W/1m) | -0.5 dB ~ 10.5 dB |
| Impedance | 10 k? balanced | |
| Connector | XLR female with Male Linkthrough | |
| Outputs | Voltage / Impedance | 100 V / 42 ? |
| Connector | 4-pin Euro Terminal Block (Pitch - 5.08 mm) |
| PRODUCT FEATURES | ||
|---|---|---|
| Dimensions | 482 x 88 x 420 mm (W x H x D) | |
| Weight | 8.350 kg | |
| Mounting | 19" | |
| Unit height | 2 HE | |
| Construction | Steel | |
| Colours | Black | |
| Accessories | Included | 4 x 4-pin Euro Terminal Block outputs connector |
| Optional | CPE100 Rack mount handles |
