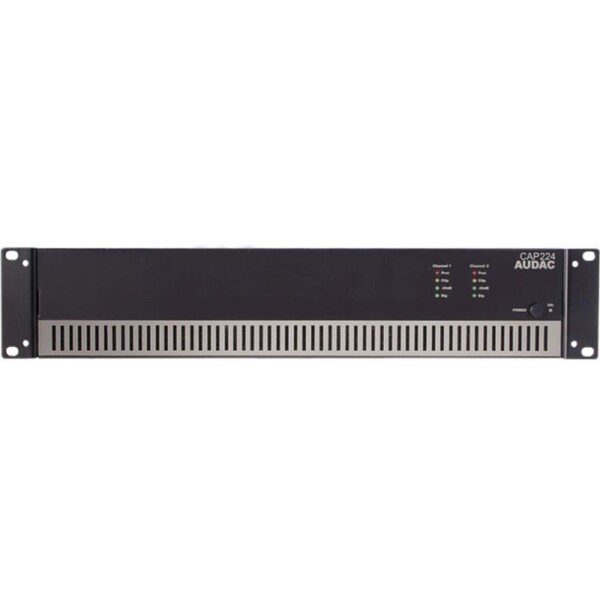

AUDAC 2Ch 100V- 2X 240W Power Amp Class D - Audac
CAP224 DUAL-CHANNEL POWER AMPLIFIER 2 X 240W 100V
The CAP series are professional 100V multi-channel power amplifiers.
The CAP224 offers two channels and has an output power of240 Watt.
This way, a flexible solution is created for multi-zone audio distribution systems with two independent zones.
They are designed as no-nonsense amplifiers with only thenecessary controls and connections which creates great simplicity in use and installation.
A high efficiency and reliability of the device is achieved by using switching power supplies in combination with Class-D amplifier technology.
A temperature controlled fan constantly keeps all parts within the right operation range while avoiding excessive buzz.
A built-in multipurpose protection circuit protects against DC malfunction, short circuit, overheating, overloadand limits the signal when necessary.
The input connections are performed using balanced XLR connectors and link output connectors are provided for link through to other amplifiers.
Besides, a high-pass filter switch (400 Hz) and a gain adjustment potentiometer are provided for each channel.
The output connections are performed using reliable terminal block connectors and this all is housed into a solid constructed, double rack space (2 HE) 19" rack mounting housing.
| SYSTEM SPECIFICATIONS | ||
|---|---|---|
| RMS Power | 2 x 240 W | |
| Signal / Noise | > 100 dB | |
| THD+N (@ 1 kHz) | < 0.3% (1/2 Rated Power) | |
| Crosstalk (@ 1 kHz) | < 80 dB | |
| Technology | Class-D | |
| Common mode rejection ratio | 70 dB | |
| Protection | DC Short circuit | |
| Over heating | ||
| Over load | ||
| Signal limiting | ||
| Cooling | Temperature controlled FAN | |
| Operating temperature | 0o ~ 40o @ 95% Humidity | |
| Frequency | Response ( 3 dB) | 50 Hz - 22 kHz |
| Power | Supply | Switching mode |
| Source | 230 ~ 240 V AC / 50 Hz | |
| Inputs | Sensitivity (1W/1m) | -0.5 dB ~ 10.5 dB |
| Impedance | 10 k? balanced | |
| Connector | XLR female with Male Linkthrough | |
| Outputs | Voltage / Impedance | 100 V / 42 ? |
| Connector | 4-pin Euro Terminal Block (Pitch - 5.08 mm) |
| PRODUCT FEATURES | ||
|---|---|---|
| Dimensions | 482 x 88 x 420 mm (W x H x D) | |
| Weight | 7.200 kg | |
| Mounting | 19" | |
| Unit height | 2 HE | |
| Construction | Steel | |
| Colours | Black | |
| Accessories | Included | 2 x 4-pin Euro Terminal Block outputs connector |
| Optional | CPE100 Rack mount handles |
